1550-1625nm单模光纤波分复用�?/strong>?

产品特点９�/p>

• 低PDL

• 低插入损耖�/p>

• 高隔离度

• 高回波损耖�/p>

• 稳定可靠

产品应用９�/p>

• 光通信系统

• 光纤放大�?/p>

• 有线电视系统

• 光纤传感�?/p>

• Specifications			1550/1625nm
  Parameter		Unit	Premium		A grade
  Shorter Wavelength Channel		nm	1550��5
  Insertion Loss	Max.	dB	0.3		0.4
  PDL	Max.	dB	0.1		0.15
  Isolation @ 1625��5 nm	Min.	dB	15		13
  Longer Wavelength Channel		nm	1625��5
  Insertion Loss	Max.	dB	0.3		0.4
  PDL	Max.	dB	0.1		0.15
  Isolation @ 1550��5 nm	Min.	dB	15		13
  Operating power	Max.	W	5
  Operating Temperature		��C	-40 to +85
  Storage Temperature		��C	-50 to +85

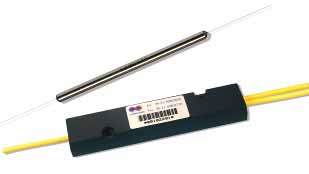

  Package Type			S9	?3x76: for bare fiber
  		mm	S10	?3x92: for 0.9mm loose tube
  			M3	7.5x18x100: for 0.9mm loose tube or 2mm cable or 3mm cable

Typical Spectrum:

Ordering Information:

• W

  D

  M

  0

  0

  Wavelength 6=1550/1625nm

  Structure 1=1x2 2=2x2

  Grade P=Premium A=A grade

  Package 8=S9 9=S10 F=M3

  Fiber Type

  Pigtail

  Fiber Length

  Connector

  1=SMF-28e

  S=250um

  0=0.5m

  0=None

  bare fiber

  1=0.75m

  1=FC/PC

  M=0.9mm

  2=1.0m

  2=FC/SPC

  loose tube

  S=Specify

  3=FC/APC

  L=3mm cable

  4=SC/SPC

  R=2mm cable

  5=SC/APC

  6=ST

  7=FC/UPC

  8=SC/UPC

  9=MU

  A=LC

  B=SC/PC

  Note: 1. Central Wavelength can be customized for different applications. 2. All specifications are before connectors and are subject to change without notice.
