UPD超快光电探测?Ultrafast_Photodetectors)
品牌９/strong>ALPHLAS UPD
产品简今/span> ALPHLAS UPD系列自由空间入射超快光电探测器系?适合用于从直流到25GHz的空间光波形的测量。可提供检?短为15ps上升时间的光脉冲信号，覆盖从170?600nm的光谱范围 所有探测器都由紧凑坚实的过氧极化铝外壳封装，供电方式可以采用电池或外接电源 ?*可提供从170?100 nm扩展到紫外光谱范围高速硅探测器商业产品 另一种类型独特的紫外线敏感的InGaAs 探测器，可用于检测从350?700纳米范围内的激光脉冲，因此具有*宽的光谱范围?*的响应速度?*的阻抗匹配和***的微波技术，确保测量的脉冲波形的保真度。用户可以自由使?0的匹配电阻，进行**响应速度的检测。或为获得大的信号响应曲线，加入高阻抗负载。保证了UPD产品为不同的应用提供**的灵活性 结合BBA系列宽带高增益放大器，高速光探测器对于取代昂贵和繁琐的雪崩光电二极管是一个极好的选择。UPD的系列高速光电探测器是激光和光子学研究的不可缺少的工具、/p>

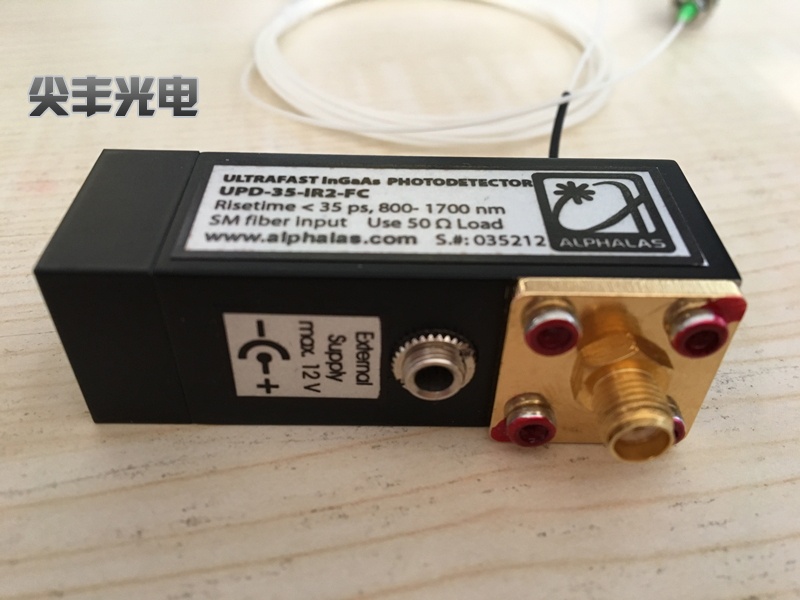

产品图片９/p>
特点
超高速运
上升时间?5 ps - 500ps
带宽?*?5 GHz
光谱范围?70 - 2600纳米
紧凑封装
电池或外部电
自由空间光入射或FC/PC垊/p>
接头或光纤尾纣/p>
应用
脉冲形式测量
脉冲宽度测量
精确的同
模式变化监控
外差测量
UPD系列９/p>
Photodetector Model |
Rise Time(ps) |
Band-width(GHz) |
Spectral Range(nm) |
Quantum Efficiency@ Peak |
SensitiveArea (Dia. m/mm2) |
Noise Equiv. Power (W/√Hz) |
DarkCurrent (nA) |
Material |
Optical Input / Window Type1) |
RF Output Connec-tor |
|
UPD-15-IR2-FC |
< 15 |
> 25 |
800 - 1700 |
75% |
Fiber 9 m |
1.0 10-15 |
0.1 |
InGaAs |
Fiber w. FC/APC5) |
SMA |
|
UPD-30-VSG-P |
< 30 |
> 10 |
320 - 900 |
40% |
200x200/0.04 |
3.0 10-15 |
0.1 |
GaAs |
Polished glass |
SMA |
|
UPD-35-IR2-P |
< 35 |
> 10 |
800 - 1700 |
80% |
55/0.0024 |
1.0 10-15 |
0.3 |
InGaAs |
Polished glass |
SMA |
|
UPD-35-IR2-D |
< 35 |
> 10 |
800 - 1700 |
80% |
55/0.0024 |
1.0 10-15 |
0.3 |
InGaAs |
Diffuse quartz |
SMA |
|
UPD-35-IR2-FR |
< 35 |
> 10 |
800 - 1700 |
80% |
55/0.0024 |
1.0 10-15 |
0.3 |
InGaAs |
FC/PC receptacle5) |
SMA |
|
UPD-35-IR2-FC |
< 35 |
> 10 |
800 - 1700 |
80% |
Fiber 9 m |
1.0 10-15 |
0.3 |
InGaAs |
Fiber w. FC/APC5) |
SMA |
|
UPD-35-UVIR-P |
< 35 |
> 10 |
350 - 1700 |
80% |
55/0.0024 |
1.0 10-15 |
0.3 |
InGaAs4) |
Polished MgF2 |
SMA |
|
UPD-35-UVIR-D |
< 35 |
> 10 |
350 - 1700 |
80% |
55/0.0024 |
1.0 10-15 |
0.3 |
InGaAs4) |
Diffuse quartz |
SMA |
|
UPD-40-VSI-P |
< 40 |
> 8.5 |
500 - 1690 |
40% |
200x200/0.04 |
3.0 10-10 |
5000 |
InGaAs |
Polished glass |
SMA |
|
UPD-40-IR2-P |
< 40 |
> 8.5 |
800 - 1700 |
80% |
60/0.0028 |
1.1 10-15 |
0.5 |
InGaAs |
Polished glass |
SMA |
|
UPD-40-IR2-D |
< 40 |
> 8.5 |
800 - 1700 |
80% |
60/0.0028 |
1.1 10-15 |
0.5 |
InGaAs |
Diffuse quartz |
SMA |
|
UPD-40-IR2-FR |
< 40 |
> 8.5 |
800 - 1700 |
80% |
60/0.0028 |
1.1 10-15 |
0.5 |
InGaAs |
FC/PC receptacle5) |
SMA |
|
UPD-40-IR2-FC |
< 40 |
> 8.5 |
800 - 1700 |
80% |
Fiber 9 m |
1.1 10-15 |
0.5 |
InGaAs |
Fiber w. FC/APC5) |
SMA |
|
UPD-40-UVIR-P |
< 40 |
> 8.5 |
350 - 1700 |
80% |
60/0.0028 |
1.1 10-15 |
0.5 |
InGaAs4) |
Polished MgF2 |
SMA |
|
UPD-40-UVIR-D |
< 40 |
> 8.5 |
350 - 1700 |
80% |
60/0.0028 |
1.1 10-15 |
0.5 |
InGaAs4) |
Diffuse quartz |
SMA |
|
UPD-50-SP |
< 50 |
> 7.0 |
320 - 1100 |
45% |
100/0.0079 |
1.2 10-15 |
0.001 |
Si |
Polished glass |
SMA |
|
UPD-50-SD |
< 50 |
> 7.0 |
320 - 1100 |
45% |
100/0.0079 |
1.2 10-15 |
0.001 |
Si |
Diffuse quartz |
SMA |
|
UPD-50-UP |
< 50 |
> 7.0 |
170 - 1100 |
45% |
100/0.0079 |
1.2 10-15 |
0.001 |
Si4) |
Polished MgF2 |
SMA |
|
UPD-50-UD |
< 50 |
> 7.0 |
170 - 1100 |
45% |
100/0.0079 |
1.2 10-15 |
0.001 |
Si4) |
Diffuse quartz |
SMA |
|
UPD-70-IR2-P |
< 70 |
> 5.0 |
800 - 1700 |
80% |
80/0.005 |
2.0 10-15 |
0.8 |
InGaAs |
Polished glass |
SMA |
|
UPD-70-IR2-D |
< 70 |
> 5.0 |
800 - 1700 |
80% |
80/0.005 |
2.0 10-15 |
0.8 |
InGaAs |
Diffuse quartz |
SMA |
|
UPD-70-IR2-FR |
< 70 |
> 5.0 |
800 - 1700 |
80% |
80/0.005 |
2.0 10-15 |
0.8 |
InGaAs |
FC/PC receptacle5) |
SMA |
|
UPD-70-IR2-FC |
< 70 |
> 5.0 |
800 - 1700 |
80% |
Fiber 9 m |
2.0 10-15 |
0.8 |
InGaAs |
Fiber w. FC/APC5) |
SMA |
|
UPD-70-UVIR-P |
< 70 |
> 5.0 |
350 - 1700 |
80% |
80/0.005 |
2.0 10-15 |
0.8 |
InGaAs4) |
Polished MgF2 |
SMA |
|
UPD-70-UVIR-D |
< 70 |
> 5.0 |
350 - 1700 |
80% |
80/0.005 |
2.0 10-15 |
0.8 |
InGaAs4) |
Diffuse quartz |
SMA |
|
UPD-100-IR1-P |
< 100 |
> 3.0 |
400 - 2000 |
80% |
80/0.005 |
3.0 10-13 |
700 |
Ge |
Polished glass |
SMA |
|
UPD-200-SP |
< 175 |
> 2.0 |
320 - 1100 |
85% |
400/0.126 |
1.5 10-15 |
0.001 |
Si |
Polished glass |
BNC |
|
UPD-200-SD |
< 175 |
> 2.0 |
320 - 1100 |
85% |
400/0.126 |
1.5 10-15 |
0.001 |
Si |
Diffuse quartz |
BNC |
|
UPD-200-UP |
< 175 |
> 2.0 |
170 - 1100 |
85% |
400/0.126 |
1.5 10-15 |
0.001 |
Si4) |
Polished MgF2 |
BNC |
|
UPD-200-UD |
< 175 |
> 2.0 |
170 - 1100 |
85% |
400/0.126 |
1.5 10-15 |
0.001 |
Si4) |
Diffuse quartz |
BNC |
|
UPD-300-SP |
< 300 |
> 1.0 |
320 - 1100 |
90% |
600/0.283 |
3.0 10-15 |
0.01 |
Si |
Polished glass |
BNC |
|
UPD-300-SD |
< 300 |
> 1.0 |
320 - 1100 |
90% |
600/0.283 |
3.0 10-15 |
0.01 |
Si |
Diffuse quartz |
BNC |
|
UPD-300-UP |
< 300 |
> 1.0 |
170 - 1100 |
90% |
600/0.283 |
3.0 10-15 |
0.01 |
Si4) |
Polished MgF2 |
BNC |
|
UPD-300-UD |
< 300 |
> 1.0 |
170 - 1100 |
90% |
600/0.283 |
3.0 10-15 |
0.01 |
Si4) |
Diffuse quartz |
BNC |
|
UPD-500-SP |
< 500 |
> 0.6 |
320 - 1100 |
90% |
800/0.5 |
3.5 10-15 |
0.01 |
Si |
Polished glass |
BNC |
|
UPD-500-SD |
< 500 |
> 0.6 |
320 - 1100 |
90% |
800/0.5 |
3.5 10-15 |
0.01 |
Si |
Diffuse quartz |
BNC |
|
UPD-500-UP |
< 500 |
> 0.6 |
170 - 1100 |
90% |
800/0.5 |
3.5 10-15 |
0.01 |
Si4) |
Polished MgF2 |
BNC |
|
UPD-500-UD |
< 500 |
> 0.6 |
170 - 1100 |
90% |
800/0.5 |
3.5 10-15 |
0.01 |
Si4) |
Diffuse quartz |
BNC |
|
UPD-3N-IR2-P |
< 1506) |
> 0.46) |
800 - 2100 |
75% |
300/0.07 |
1.5 10-13 |
90 |
InGaAs |
Polished glass |
BNC |
|
UPD-5N-IR2-P |
< 2006) |
> 0.36) |
800 - 2600 |
70% |
300/0.07 |
7.0 10-13 |
2000 |
InGaAs |
Polished glass |
BNC |
|
UPD-2M-IR2-P |
< 75000 |
> 0.004 |
900 - 1700 |
80% |
2000/3.14 |
4.0 10-14 |
5 |
InGaAs |
Polished glass |
BNC |
|
UPD-2M-IR2-P-1TEC3) |
< 75000 |
> 0.004 |
900 - 1700 |
75% |
2000/3.14 |
1.0 10-14 |
0.3 |
InGaAs |
Polished glass |
BNC |
MSM超快光电探测器UltraFast
产品简今/span>：UltraFast系列MSM超快光电探测器，探测带宽可达35GHz，探测波长范?00~1600nm。经过优化设计，探测器脉冲拖尾降?低，并可无震荡脉冲响应工作。所采用的MSM结构（金属－半导体－金属）具有电容低、串联阻抗低和感应面积大等内在优点，这些优点使得探测器具有优良的性能。特殊的结构和掺杂，提高了探测器的响应度，降低了电噪声。MSM探测器是测定高速光源和光波系统的时频特性的理想选择、/p>
两种型号９/strong>
UltraFast-20 (Bandwidth DC 20 GHz)
UltraFast-35 (Bandwidth DC 35 GHz)
技术参数：
UltraFast-20-xx |
UltraFast-35-xx |
|
探测器类垊/p> |
MSM (Metal Semiconductor Metal) |
|
感应材料 |
InGaAs |
|
带宽 (-3 dB) |
DC 20 GHz |
DC 35 GHz |
上升时间 (10% - 90%) |
< 12 ps |
< 11 ps |
脉宽 (FWHM) |
< 20 ps |
< 18 ps |
波长范围 |
<400 nm 1.6 m |
|
**响应? |
0.24 A/W @ 810 nm 0.19 A/W @ 1.3 m 0.12 A/W @ 1.5 m |
0.12 A/W @ 810 nm 0.1 A/W @ 1.3 m 0.06 A/W @ 1.5 m |
偏置电压 |
2 V 9 V |
|
偏置输入接口 |
SMC male |
|
标准射频信号输出叢/p> |
K-Type female |
|
* 跟耦合结构有关，响应度值可能会降低、/p>
上海尖丰光电技术有限公号/strong>
AOE TECH CO.，LTD
地址：上海市闵行区元江路3599叶/strong>328宣/strong>
邮编９/strong>201109
电话９/strong>021- 64306513
传真９/strong>021- 64306513
E-mail９/strong>sales@ao*********
