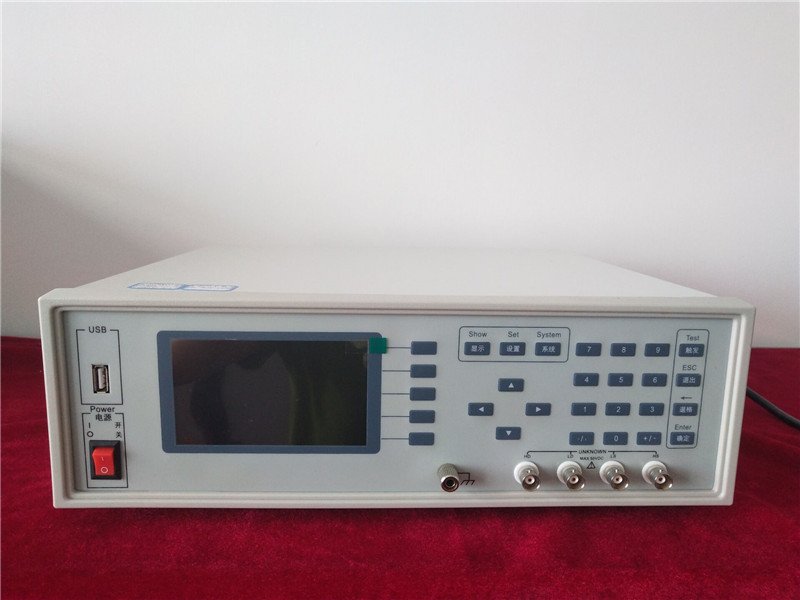

FT-310炭素电阻率测试仪

FT-310 Carbon resistivity tester

一.描述description９�/span>

四端测试法测量碳素材料，石墨等块状棒状及粉末材料常温下导电性能。恒流，自动电流档， 4.3吋液晶显示，显示：电流、电压、温度、电阻率，电导率，电阻等数据，选配：PC软件获得测试数据之图谱和报表。根据产品形状不同选购测试治具.

The four terminal test method measures the high conductivity performance of carbon materials, graphite and other block-like rods and powder materials Under the normal temperature.High precision constant current. constant voltage source. Automatic current gear. 4.3 inch LCD to display: current. voltage. temperature. resistivity. Conductivity and resistance datas. Optional to buy :PC software receives the test data chart and report. choose to buy test jigs according to the shape of the product.

�?适用范围Scope of application９�/span>

适用于碳素厂、焦化厂、石化厂、粉末冶金厂、高等院校、科研部门对材料之研�?

Suitable for carbon plant. coking plant. petrochemical plant. powder metallurgy factory. colleges and universities. scientific research department of new material research.

�?参照标准standard９�/span>

铝用炭素材料检测方� �?部分 阴极炭块和预焙阳极室温电阻率的测� GB/T6717、GB/T 24525-2009、YS/T63.2炭素材料电阻率测定方�?；ISO 11713-2000、YS/T63.2-2005和YS/T 64-1993标准方法测试阴极炭块、预焙阳极、阳极糊阴极糊和炭素制品常温下的电阻率、�/span>

aluminum carbon material detection method part 2 The resistivity measureming of Cathode carbon blocks and pre-baked anode under room temperature.GB/T6717. GB/T 24525-2009. YS/T63.2 carbon material resistivity method. At the same time meet the ISO 11713-2000. YS/T63.2-2005 and YS/T 64-1993 standard test method to test the resistivity of cathode carbon block. pre-baked anode and the anode paste cathode paste and carbon product under room temperature.

炭素材料制品的电阻率值是评价炭制品电极质量，也是在炭制品加工中控制监督工艺过程的重要参数、�/span>

The resistivity value of the carbon materials products is one of the important physical indexes to evaluate the quality of electrode to Determine thep roducts's grade . It is also an important parameter to control the process of monitoring process in carbon processing.

测量电阻灵敏度达0.01μΩ. ，测试电流能达到10A

Measurement resistance sensitivity of 0.01μΩ. test current can achieve 10A

�?参数资料/ index

1.电压/ voltage：量�? range� 2mV.20mV. 200mV.2V

分辨�?resolution� 0.1uV�?uV�?0uV�?00uV

量程误差�?mV 桢� 0.1%读数+ 6个字 / range: 2mV. accuracy: 0.1%

20mV. 200mV. 2V档： 0.1%读数+ 2� /range:20mV. 200mV. 2V. accuracy� 0.1%

2直流恒流�? DC constant current source� 输出/ output� 100uA.1mA.10mA.100mA.1A.10A.

误差Range� 100uA.1mA.10mA.100mA：accuracy 0.1%�

Range:1A�?0A accuracy� 0.15%

3.测量范围：炭素长度：1.6m�?m;炭素直径�?00mm�?00mm

电阻率：2×10-8�?0kΩ·cm;电阻�?.01μΩ�?0kΩ：�/span>

Measuring range: carbon materials length 1.6m�?m. carbon materials diameter 100mm�?00mm.

resistivity�?×10-8�?0kΩ·cm; resistance�?.01μΩ�?0kΩ：�/span>

4.电阻分辩�? resolution�?.01μΩ

5.显示�?.3寸液晶屏、直读电阻值、电阻率、电导率、温度、电流、电压等数据

Display: 4.3 inch LCD display. direct reading resistance. resistivity. conductivity. temperature. current. voltage and other data.

6.电源交流/ AC power 220±10% 50HZ/ 60HZ

配套方案：解决各材料状�?/span>--固态、液态、气态、颗粒状电阻、电阻率、电导率测量
