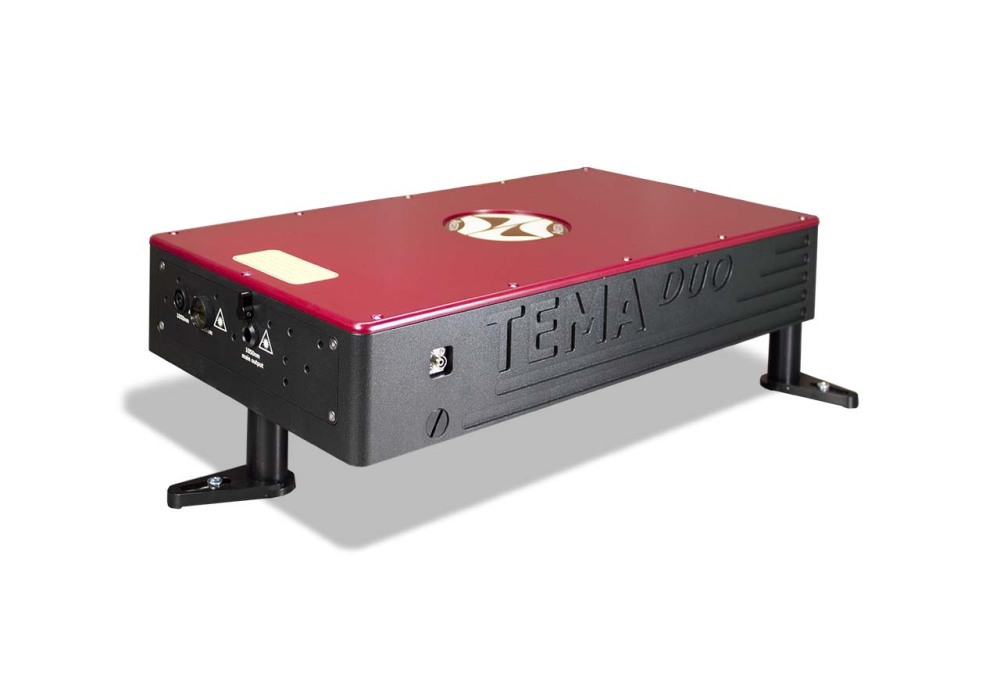

TeMa Yb飞秒固体激光器
特点９/strong>
输出功率>6 W
窄脉宽，<100 fs
体积導/p>
集成泵浦溏/p>
高稳宙/p>
飞秒自启?/p>
可选外置脉冲压缩器<15 fs
应用９/strong>
放大器的种子振荡?/p>
多光子激发显微镜
泵浦探针光谱技?/p>
产生超连续谱
产生太赫兹辐尃/p>
时分辨光谱技?/p>
光学相干层析技?/p>
掺镱TeMa激光器波长10505 nm，输出功率可? W，可以在微米波长达到钛宝石激光器同样的额定功率、/p>
集成泵浦源，系统更加稳定，使用方便。激光器整体设计保证* da刚度，同时自启动设计可以实现即插即用、/p>
| TEMA-70 | TEMA-100 | TEMA-150 | |
| Output power | >2 W | >5 W | >7 W |
| Output pulse duration1) | <70 fs | <100 fs | <150 fs |
| Spectrum width (FWHM) | >16 nm | >12 nm | >7.5 nm |
| Pulse energy | >28 nJ | >70 nJ | >100 nJ |
| Peak Power | >400 kW | >700 kW | >660 kW |
| Central wavelength (fixed) | 10505 nm | ||
| Pulse repetition rate (fixed) | 705 MHz | ||
| Beam mode | TEMoo | ||
| M^2 | <1.1 | ||
| Beam diameter (at 1/e^2) | 10.2 mm | ||
| Output polarization | linear horizontal | ||
| Beam divergence | <1.80.3 mrad | ||
| Beam asymmetry | <10% | ||
| Beam astigmatism | <10% | ||
| Long-term stability2) | <0.3% rms | ||
| Cold start warm-up time | <20 min | ||
| Cooling requirements | |||
| Laser Head | closed-loop chiller included | ||
| Power Supply | air-cooled | ||
| Physical dimensions (L W H) | |||
| Laser head dimensions | 412 190 93 mm | ||
| Laser control unit dimensions | 290 200 80 mm | ||
| Closed-loop chiller dimensions | 430 340 190 mm | ||
| Umbilical length | 1.8 m | ||
| Environmental and utility specifications | |||
| Operating temperature | 18-28 C | ||
| Relative humidity | <60% non-condensing | ||
| Voltage | single-phase; 100-240 VAC; 50/60 Hz | ||
| Power consumption | <1 kW | ||
| 1) - sech2pulse shape is used to determine the pulse duration measured with the AA-20DD interferometric autocorrelator (Avesta); 2) - after 30 min warm-up with cold start during 12-hour continuous operation under equal room temperature conditions using recommended stabilized closed-loop chiller with proper capacity. |
|||
