仪器简介：

YLVMS 影像测量�?/strong> Image Admeasuring Apparatus

产品介绍�

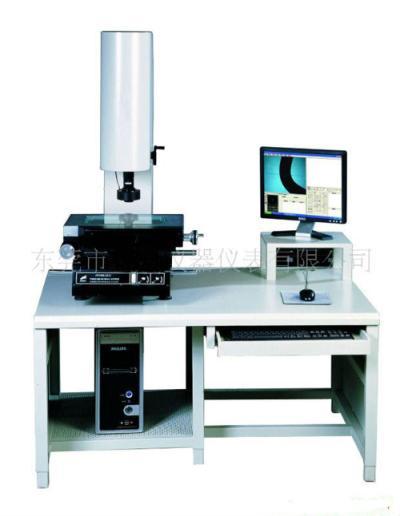

增强型VMS系列光学影像测量仪，是我公司推出的一款增强型2D光学影像测量仪，采用高分辨率日本索尼彩色CCD摄像机和美国NAVITAR变焦物镜，采用我公司自主研发的MCINS手动版测量软件，具备基本的点、线、圆、距离、角度等基本测量功能及多坐标功能，能满足基本的二次元测量需求；此外测量数据可输入EXCEL、WORD、TXT中或者将测量图形输出至DXF文档做CAD设计�

Product Instructions: Enhanced VMS series of optical image measuring instrument was an enhanced 2D optical image measuring instrument which bring out by our company. Using high-resolution color Sony CCD camera and the United States NAVITAR Zoom Lens and With our company's Manual version of self-developed measurement software MCINS .This tester have the basic measurement functions of point� line� circle� distance� angle etc .and multi-axis functions which are ableing to meet the basic needs of the secondary element measurement. In addition� measurement data can be input EXCEL� WORD� TXT or output the measurement graphics to the DXF document to make CAD designs.

技术参数：

仪器规格参数Instrument Specification�

仪器型号 VMS-1510 VMS-2010 VMS-2515 VMS-3020 VMS-4030 VMS-5030

工作�

Workbench 金属台面尺寸

Metal Table-board Size（mm�

354��228

404��228

450��280

506��356

606��466

706��466

玻璃台面尺寸

Glass Table-board Size（mm�

210��160

260��160

306��196

350��280

450��350

550��350

运动行程

Movement Flow（mm�

150��100

200��100

250��150

300��200

400��300

500��300

仪器重量

Instrument Weight（kg�

100

150

170

200

250

400

外形尺寸（长���?#215;高）Outside Measurement (L��W��H)（mm� 600��600��950 600��550��920 680��670��1020 780��600��1080 960��750��1100 960��750��1100

Z 轴升降行程Z Axial Rising And Falling Route�?50mm 工作距离Operating Distance�?08mm

X、Y、Z数显分辨率X、Y、Z Digital Display Resolution�?.0005mm

X、Y坐标示值误差X、Y Coordinate Value Marked Error：≤�?+L/200�?#181;m

影像系统 Image System 摄影机Camera：彩�?/3"CCD摄影� Multi-Colored 1/3“CCD Camera

变焦物镜倍率NAVITAR�?.7�?.5X

视频总倍率Video Total Multiplying Power�?0X�?30X

物方视场Object Field�?-1.1mm

表面光源与透射光源均用LED，亮度可� Surface Lighting And Transmission Lighting Are All Made By LED� Brightness Was Changeable

电源Electric Power Source

180V（AC）～260V（AC� 50Hz

测量软件Survey Software 标备自动测量软件，可自动寻边、去毛刺，可测贴、线、圆、角度、圆心距、摆正等。Provide Automatic Survey Software� Able To Look For The Edge And chip Removing. The Paste、Thread、Circular、Angle、The Distance Of The Circle Center、Quadrierung And So On.

主要特点９�/strong>

YLVMS 影像测量�?/strong> Image Admeasuring Apparatus

产品介绍�

增强型VMS系列光学影像测量仪，是我公司推出的一款增强型2D光学影像测量仪，采用高分辨率日本索尼彩色CCD摄像机和美国NAVITAR变焦物镜，采用我公司自主研发的MCINS手动版测量软件，具备基本的点、线、圆、距离、角度等基本测量功能及多坐标功能，能满足基本的二次元测量需求；此外测量数据可输入EXCEL、WORD、TXT中或者将测量图形输出至DXF文档做CAD设计�

Product Instructions: Enhanced VMS series of optical image measuring instrument was an enhanced 2D optical image measuring instrument which bring out by our company. Using high-resolution color Sony CCD camera and the United States NAVITAR Zoom Lens and With our company's Manual version of self-developed measurement software MCINS .This tester have the basic measurement functions of point� line� circle� distance� angle etc .and multi-axis functions which are ableing to meet the basic needs of the secondary element measurement. In addition� measurement data can be input EXCEL� WORD� TXT or output the measurement graphics to the DXF document to make CAD designs.
