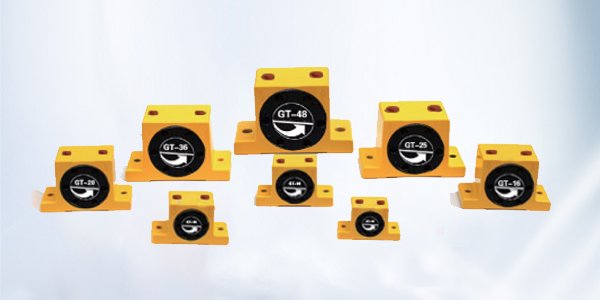

产品名称：GT系列涡轮式气动振动器
产品概述
GT系列转轮振动器是欧顿公司依托自身研发团队结合国外先进技术，引进先进生产线研发高新产品，产品结合了高速与偏心加工力矩，采用正负阳极氧化端盖和转轮，使产生强大功率的振动力。壳体采用高压力、高精度成型设备，一次成型精密加工而成，提高产品的精度，保证产品的质量。GT涡轮振动器经公司测试结果符合目前国际上的噪音技术要求、/span>
GT series is the runner of vibrator's own research team company with foreign advanced technology, the introduction of advanced production lines, product research and high-tech products with high speed and torque,adopts eccentric processing minus anodic oxidation cover and wheel and generate strong power of vibration. Shell adopts high pressure,high precision molding equipment, precision machining and forming time, improve the product's accuracy, ensure the quality of products.GT一turbine vibrators company test results with the noise current international technical requirements.
工作原理
产品内部装有偏离心铜合金转子，压缩空气通入进去孔冲击，转子内正与负不平衡力矩的离心力产生振动，转子由二个高功率，预润滑的匹配有护圈轴承支持。使用寿命特别长的润滑脂采保证较长的二使用寿命、/span>
Products from inside the heart with copper alloy rotor, compressed negative within the centrifugal force, moment by two rotor vibration air, the hole in the rotor imbalance with generation lubricated bearing retainer. Especially long use life by assure long grease second of high power, the match is life.
技术参?/span>
| 型号 | 振动频率（次/分） | 离心振动力（N（/span> | 空气消?分钟（Ltr（/span> | Weight/重量 | ||||||
| 2 Bar 29 PSI |
4 Bar 58 PSI |
6 Bar 87 PSI |
2 Bar 29 PSI |
4 Bar 58 PSI |
6 Bar 87 PSI |
2 Bar 29 PSI |
4 Bar 58 PSI |
6 Bar 87 PSI |
||
| GT-8 | 36.000 | 42.000 | 46.000 | 990.00 | 2.060 | 2.910 | 0.48 | 0.75 | 1.52 | 255g |
| GT-10 | 27.000 | 35.000 | 37.000 | 840.00 | 1.390 | 2.400 | 0.48 | 0.75 | 1.52 | 265g |
| GT-13 | 26.000 | 30.000 | 33.000 | 1.400 | 2.440 | 3.730 | 1.25 | 2.10 | 2.80 | 582g |
| GT-16 | 17.000 | 21.500 | 24.000 | 1.220 | 2.090 | 3.160 | 1.25 | 2.10 | 2.80 | 615g |
| GT-20 | 17.000 | 20.000 | 23.000 | 2.170 | 4.040 | 5.520 | 1.88 | 3.15 | 4.65 | 1120g |
| GT-25 | 12.000 | 15.500 | 17.000 | 2.120 | 3.150 | 5.070 | 1.88 | 3.15 | 4.65 | 1205g |
| GT-30 | 13.000 | 14.000 | 16.000 | 3.380 | 5.430 | 7.540 | 3.38 | 5.25 | 7.55 | 2300g |
| GT-36 | 8.000 | 10.000 | 13.000 | 3.290 | 5.360 | 7.190 | 3.38 | 5.25 | 7.55 | 2550g |
外形尺寸
