承插焊管件（一（/p>
GB/T 14383、HGJ10、SHJ410、ASME B16.11、JIS B2316
Socket welding pipe fittings
公称通径 Nominal diameter DN(in) |
深插 深度 Depth of socket |
壁厚Wall thickness |
中心至承插孔应/span>Center to bottom of socket |
|||||||
A |
||||||||||
Cmin |
90°弯头、三通、四?nbsp;Elbow?/span>Tee?/span>Cross |

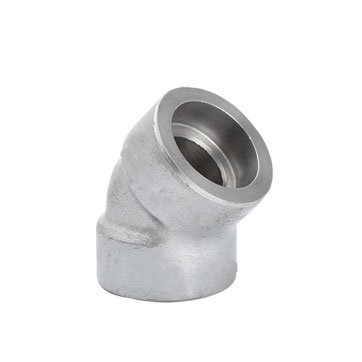

45°弯头45°Elbow |
||||||||
A |
B(in) |
Jmin |
3000 Sch80 |
6000 Schl60 |
9000 XXS |
3000 Sch80 |
6000 Schl60 |
9000 XXS |
3000Sch80 |
6000Schl60 |
6 |
1/8 |
10 |
3.2 |
4.0 |
- |
11 |
11 |
- |
8 |
8 |
8 |
1/4 |
10 |
3.8 |
4.6 |
- |
11 |
14 |
- |
8 |
8 |
10 |
3/8 |
10 |
4.0 |
5.1 |
- |
14 |
16 |
- |
8 |
11 |
15 |
1/2 |
10 |
4.5 |
5.6 |
9.4 |
16 |
19 |
25 |
11 |
13 |
20 |
3/4 |
13 |
5.0 |
7.0 |
9.8 |
19 |
22 |
29 |
13 |
14 |
25 |
1 |
13 |
5.6 |
7.9 |
11.4 |
22 |
27 |
32 |
14 |
18 |
32 |
11/4 |
13 |
6.3 |
7.9 |
12.2 |
27 |
32 |
35 |
18 |
21 |
40 |
11/2 |
13 |
6.3 |
8.9 |
12.7 |
32 |
38 |
38 |
21 |
25 |
50 |
2 |
16 |
7.0 |
11.0 |
13.9 |
38 |
41 |
54 |
25 |
29 |
65 |
21/2 |
16 |
8.9 |
12.5 |
- |
41 |
57 |
- |
29 |
32 |
80 |
3 |
16 |
10.0 |
13.8 |
- |
57 |
64 |
- |
32 |
35 |
100 |
4 |
16 |
10.7 |
- |
- |
67 |
- |
- |
41 |
- |
? 1)本表列出的为承插焊管件各相同部分尺寸,各标准规定的接管尺寸及承插孔径d1，流通孔径d2，见?6页、/p>
2) 3000 6000 9000为压力等级代?单位为磅/平方英寸; sch80、sch160、XXS为壁厚等级代号、/p>
3) 45° 90°弯头当其为异径时,流通孔径d2的尺寸用小口径公称通径相对的尺寸d2、/p>
