• 处理能力50-200

• 产品型号WF100

• *小订货量1

• 配用功率4

• � 件�em title="18500">18500

• 供货能力中国 新乡

• 计量单位

主要用途：

本机器用于制药、化工、食品等行业，是微粉碎加工道工序的配套设备，它不受物料粘度、硬度、软度及纤维等限制，对任何物料都能起到较好的粉碎作用�?nbsp;

Main Application:

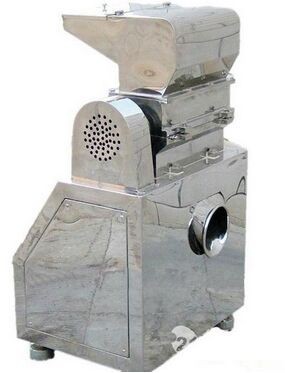

Model WF Rough Mill is a preprocess set to support the fine grinding process and used in the industries of pharmaceutics,chemical,and food.

工作原理９�/p>

本机为卧式粉碎结构，物料由料斗进入粉碎室，利用旋转刀与固定刀冲击、剪切而获得粉碎，经旋转离心力的作用，物料自动流向出口处。该机按“GMP标准设计”，整机全部采用不锈钢材料制造，结构简单、清洗方便、噪音低是目前粗粉碎�?理想的设备、�/p>

Operating Principle:

This model has a horizontal crushing structure.Raw material is sent into the crushing chamber through a hopper and then stroked by the knife blade and the tool apron.The revolving and fixed knifes cut and grind material.Processed stuff runs to the exit automatically because of the rotarycentrifugal force.The machine is designed according to GMP standard and made of stainless steel.The advantages of it are simple structure,convenient cleaning and low noise.Currently it is the most ideal one among coarse crushing machines.

技术参�?nbsp;:

型号 Model	生产能力（kg/h（�/p> Production Capacity	主轴转速（r/min（�/p> Spindle speed	进料粒度（mm（�/p> Feeding Size	粉碎细度（mm（�/p> Crushing Fineness	电机功率（kw（�/p> Motor Power	外形尺寸长×宽×高）（mm（�/p> Overall Dimension	重量 Weight
WF-100	50-300	400	�?00	2-20	3	700×800×1250	220
WF-120	100-500	400	�?00	2-20	5.5	800×650×1350	280
