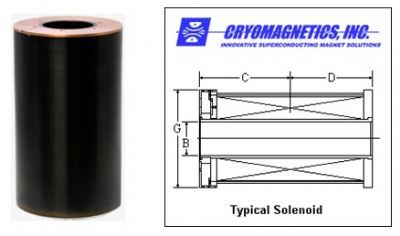

NbTi 螺线箠�/h1>

作为世界�?*的超导磁体制造商＋�/span>Cryomagnetics为其他超导磁体集成商和研究人员提侚�/span>NbTi螺线管超导磁体（NbTi Solenoids Magnet）。其�?/span>NbTi螺线管磁体由铜基多股超导细丝缠绕而成，优质超导线提供**磁场稳定性和*小磁滞。磁体线圈完全灌装在一个高导热环氧树脂里，避免超导线滑移而造成磁体形变。设计通过线的铜基和二极管保护磁体失超。失超后二极管替代电阻器保证磁体励磁时的线性，**程度减小充放电时热量的引入。所有线圈都测试�?*设计磁场和失超，确保线圈性能达到要求、�/span>

所有螺线管的额定磁场是�?/span>4.2K下标定的，通常可通过泵抽液氦减压或使�?/span>Lambda冷板使磁体在2.2K工作，额定磁场可增加20%

、�/span>

Standard 5T Solenoids

Model	Bore	Homogeneity	Current	Inductance
50-100-050L	1.00"	+/- 0.5%	44A	1.1H
50-100-010L	1.00"	+/- 0.1%	48A	1.5H
50-150-050L	1.50"	+/- 0.5%	47A	1.2H
50-150-010L	1.50"	+/- 0.1%	52A	1.7H
50-200-050L	2.00"	+/- 0.5%	44A	3.3H
50-200-010L	2.00"	+/- 0.1%	49A	3.5H
50-250-050L	2.50"	+/- 0.5%	48A	4.5H
50-250-010L	2.50"	+/- 0.1%	50A	5.5H
50-300-050	3.00"	+/- 0.5%	78A	2.5H
50-300-010	3.00"	+/- 0.1%	74A	4.0H

Standard 6T Solenoids

Model	Bore	Homogeneity	Current	Inductance
60-100-050L	1.00"	+/- 0.5%	45A	1.5H
60-100-010L	1.00"	+/- 0.1%	45A	1.7H
60-150-050L	1.50"	+/- 0.5%	50A	2.0H
60-150-010L	1.50"	+/- 0.1%	52A	2.4H
60-200-050L	2.00"	+/- 0.5%	44A	5.6H
60-200-010L	2.00"	+/- 0.1%	49A	8.6H
60-250-050L	2.50"	+/- 0.5%	45A	7.9H
60-250-010L	2.50"	+/- 0.1%	76A	4.8H
60-300-050L	3.00"	+/- 0.5%	74A	5.1H
60-300-010L	3.00"	+/- 0.1%	76A	6.8H

Standard 7T Solenoids

Model	Bore	Homogeneity	Current	Indunctance
70-100-050L	1.00"	+/- 0.5%	48A	1.8H
70-100-010L	1.00"	+/- 0.1%	48A	2.0H
70-150-050L	1.50"	+/- 0.5%	48A	2.1H
70-150-010L	1.50"	+/- 0.1%	49A	2.5H
70-200-050L	2.00"	+/- 0.5%	48A	5.9H
70-200-010L	2.00"	+/- 0.1%	48A	9.1H
70-250-050L	2.50"	+/- 0.5%	47A	8.5H
70-250-010L	2.50"	+/- 0.1%	47A	10.0H
70-300-050L	3.00"	+/- 0.5%	50A	14.5H
70-300-010L	3.00"	+/- 0.1%	46A	18.2H

Standard 8T Solenoids

Model	Bore	Homogeneity	Current	Inductance
80-100-050	1.00"	+/- 0.5%	75A	2.2H
80-100-010	1.00"	+/- 0.1%	76A	3.0H
80-150-050	1.50"	+/- 0.5%	79A	2.4H
80-150-010	1.50"	+/- 0.1%	78A	3.0H
80-200-050	2.00"	+/- 0.5%	86A	3.5H
80-200-010	2.00"	+/- 0.1%	76A	4.2H
80-250-050	2.50"	+/- 0.5%	80A	6.7H
80-250-010	2.50"	+/- 0.1%	79A	8.9H
80-300-050	3.00"	+/- 0.5%	83A	9.9H
80-300-010	3.00"	+/- 0.1%	78A	11.3H

Standard 9T Solenoids

Model	Bore	Homogeneity	Current	Inductance
90-100-010	1.00"	+/- 0.1%	76A	3.0H
90-150-010	1.50"	+/- 0.1%	78A	3.0H
90-200-010	2.00"	+/- 0.1%	76A	4.2H
90-200-010L	2.00"	+/- 0.1%	40A	32.0H
90-250-010	2.50"	+/- 0.1%	79A	8.9H
90-250-010L	2.50"	+/- 0.1%	40A	56.5H
90-300-010	3.00"	+/- 0.1%	78A	11.3H
90-300-010L	3.00"	+/- 0.1%	40A	48.0H
