产品展示

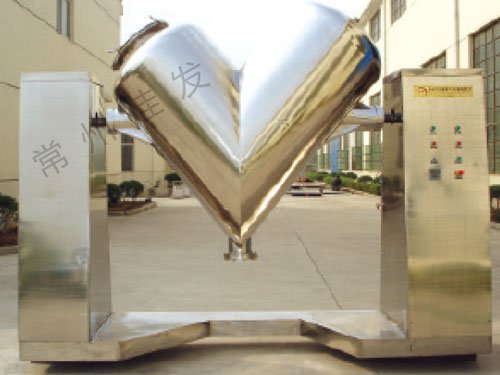

ZKH快速真空混合机

详细信息

设备特点 Features of equipment

★该机通过机械传动，使不对称的V型圆柱体内的物料做往复翻动，达到均匀混合之目的、�/p>

★The machine through mechanical transmission, the machine makes material in asymmetry V shape cylinders to turn over to-and-fro. The purpose of uniform can be got.

规格Specification 项目ltem	0.05	0.15	0.3	0.5	1	1.5	2	3	4	5
工作容积(L) Working volume	20	65	145	210	425	700	800	1250	1850	2300
装料�?kg/batch) Load	12	40	90	130	250	420	480	750	1100	1400
主轴转�?rpm) Speed main shaft	25	22	20	18	15	15	14	13	11	8
电机功率(kw) Power	0.4	0.55	0.75	1.5	3	4	5.5	5.5	7.5	7.5
回转高度(mm) Height of rotating	900	1300	1700	1840	2030	2300	2490	2850	3200	4600

所有参数仅作参考，视物料情况，本公司拥有变更权利，并不另行通知、�/p>

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
