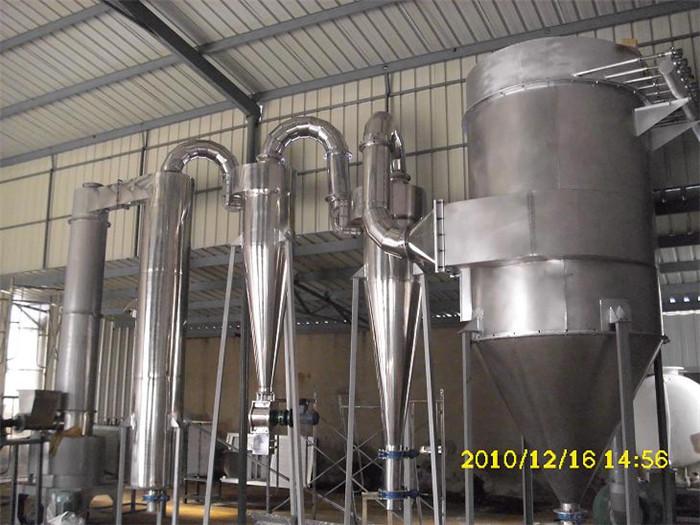

XSG系类快速旋转闪蒸干燥机
XSG系列旋转闪蒸干燥机是我公司在引进吸收国外先进技术的基础上，自行开发成功的新型干燥设备。该机技术先进，设计合理，结构紧凑，适用范围广，生产能力大，产品质量好，效率高，节能，在一个设备内干燥、粉碎、筛分一次完成，消除环境污染，整机性能达到国际**。闪蒸干燥机具有原来的轴承感应冷却（水冷却），设计用（油冷却）油泵联接送油润滑、冷却轴承，密封装置性能优异，在主轴设计上采用半环式，电机利用调速电机，传递平稳、噪声小，使用寿命是同类产品�?0倍。XSG series roating drier is developed by our company, and its techinology is based on advance techinology adored.The machine is including many superiority, such as reasonable design, compact stuction, widly utilization, grrat productive capacity,good quality, high effect and save energy, Drying, grinding and sieve are completed in one equipment in once time.It eliminate pollution and the techinology is reached international advance level.

-----------------------------------------------------------------------------------------------------------------
原理 Principle
热空气切线进去干燥器底部，在搅拌器带动下形成强有力的旋转风场。膏状物料由螺旋加料器进入干燥器内，在高速旋转搅拌桨的强烈作用下，物料受撞击、摩擦及剪切力的作用下得到分散，块状物料迅速粉碎，与热空气充分接触、受热、干燥。脱水后的干物料随热气流上升，分级环将大颗粒截留，小颗粒从环中心排出干燥器外，由旋风分离器和除尘器回收，未干透或大块物料受离心力作用甩向器壁，重新落到底部被粉碎干燥、�br/>The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed.The paste state materials enter into the drier through the screw charger. Under the powerful function of the stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force. The block state mate-rials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the dewatering will g o up with the heatair flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the ring center and will be restored by the whirl separator and dust remover. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.

典型用户９�br/> 潍坊益康药用化工�?nbsp; 连云港市达欧化工有限公司 河南宝发医药化工有限公司
乐斯化学有限公司 西安惠丰药业
-----------------------------------------------------------------------------------------------------------------
特点 Featrures
� 旋流、流化、喷动及粉碎分级技术的有机结合、�br/>� 设备紧凑，体积小，生产效率高，连续生产，实现了“小设备，大生产”、�br/>� 干燥强度大，能耗低，热效率可达70%以上、�br/>� 物料停留时间短，成品质量好，可用于热敏性物料干燥、�br/>� 负压或微负压操作，密闭性好，效率高，消除环境污染、�br/>
�?nbsp; The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency can go up to more than 70%.
� The equipment is compact and small in size , high in production efficiency and continuous in the production. It has realized that "a small equipment can perform the large production".
� The material stay time is very short. The quality of the final products is very good. The machine can be used for drying the heat sensitive materials.
� For the negative pressure or the micro-negative pressureoperation, the machine is goog for its tightness and high in the efficiency so as to eliminate the environmental pollution.
-----------------------------------------------------------------------------------------------------------------
结构示意�?nbsp; Schematic of structure

-----------------------------------------------------------------------------------------------------------------
技术参�?nbsp; Technical parameters
型号
Type 筒体直径(mm)
Barrel diameter 主机尺寸(mm)
Main machine dimensions 主机功率(kw)
Main machine power 处理风量(m3/h)
Treatment wind capacity 蒸发水量(kg/h)
Water evaporation quantity
XSG-2 200 250×2800 5-9 300-800 10-20
XSG-3 300 400×3300 8-15 600-1500 20-50
XSG-4 400 500×3500 10-17.5 1250-2500 25-70
XSG-5 500 600×4000 12-24 1500-4000 30-100
XSG-6 600 700×4200 20-29 2500-5000 40-200
XSG-8 800 900×4600 24-35 3000-8000 60-600
XSG-10 1000 1100×5000 40-62 5000-12500 100-1000
XSG-12 1200 1300×5200 50-89 10000-20000 150-1300
XSG-14 1400 1500×5400 60-105 14000-27000 200-1600
XSG-16 1600 1700×6000 70-135 18700-36000 250-2000

-----------------------------------------------------------------------------------------------------------------
结构示意�?nbsp; Schematic of structure

型号Type 高度(A)Height 长度(B)Length 宽度(C)Width
XSG-4 4600 5500 5000
XSG-6 5500 6550 6000
XSG-8 6000 7100 5600
XSG-10 7100 8200 6700
XSG-12 7500 8900 7000
XSG-14 7800 70580 8500
XSG-16 8500 14500 11000

-------------------------------------------------------------------------------------------------
技术参�?nbsp; Technical parameters
物料名称 进风温度（℃�?nbsp; 初含湿量�?�?nbsp; 终含湿量�?�?nbsp; 实际干燥数据（kg �?m3.h（�br/>硬脂酸锌 150 80 0.5 160-187
氢氧脂铝 180 55 1.5 280-375
碳酸�?nbsp; 150 80 1.0 150-200
杀虫丹 120 30 1.0 90-170
促进剂ZDC 150 60 0.5 104-110
TMTD 140 65 0.5 101-123
DSD�?nbsp; 150 60 0.5 80-140
氧化铁红 200 60 0.5 336-365
三氧化锑 180 45 1.0 300-360
氯化亚铜 200 30 3.0 323-376
二氯异氰尿酸�?nbsp; 180 25 0.2-2 80-150
三氯异氰隶酸�?nbsp; 150 30 1.0 90-173
油溶�?nbsp; 150 45 2.0 397-443
白碳�?nbsp; 450 85 5.0 296-302
代酸锰锌 120 30 1.0 105-186
酞青� 150 55 1.0 170-206
柠檬酸钙 140 40 1.0 400-552
超细碳酸� 160 70 1.5 470-512
泥浆处理�?nbsp; 200 75 5.0 317-332
