DMF-Z直角式电磁脉冲阀

产品概述

电磁脉冲阀专为除尘设备的应用而设计，具有高流量、长寿命、瞬间开关的阀门，由电磁先导控制其开通和关闭，由于先进的设计，使阀门具有良好的流体性，采用**丁晴橡胶膜片，故而具有压力损失低，OUTANS欧顿公司多年研发经验使得产品更加成熟，保证了电磁脉冲阀得到脉冲电信号时快速开启和完成脉冲后的迅速关闭、�/p>

高纯度铝合金压铸阀体，**特殊夹物组成的电磁脉冲阀膜片，使得膜片具有极高的拉伸强度、抗老化性和较低的磨损量，使得OUTANS欧顿公司电磁脉冲阀喷吹寿命高于100万次或三至五年使用不损坏、�/p>

电磁脉冲阀线圈采用高于国标级绝缘注射在防护等级为IP65全灌封，全铜漆包线，圈数高于国家标准，保证电磁脉冲阀600万次通电吸合不损坏，电磁线圈可以在脉冲阀芯上360°旋转，接线盒可以4 x 90°旋转安装，可防止暴露在露天时雨水进入，极大方便了不同角度安装、�/p>

产品介绍

D M F-Z型电磁脉冲阀输入口与输出口夹角为90°称之为直角阀，其输入、输出口为内螺纹，分别与分气�?气包)上的短管或喷吹螺纹管连接，安装方便、气流通畅，能提供理想的清灰气脉冲，适用于各种过滤单元的清灰、�/p>

DMF-Z type electromagnetic pulse valve input port and an output port angle is 90 DEG angle valve, internal threads for the input and output, respectively and gas box (air bag) on spools or spray blowing thread connecting pipe,convenient installation, smooth airflow, can provide ideal cleaning Qimai,applicable to all kinds of filter element cleaning.

使用技术指栆�/p>

工作压力Operating pressure	0.2~0.6MPa
工作介质Working medium	清洁空气Clean air
电压Voltage	DC24V AC110V AC220V(�?0%)
电流Current	1A 0.46A 0.23A
温度等级Temperature level	1.常温-25℃~80�?-13℉~176�? 2.高温-25℃~23�?-13℉~446�?
空气相对湿度Relative humidity of air	空气的相对湿度≤85%
防护等级Degree of protection	IP65
膜片寿命Diaphragm life	高于100万次，或3-5平�/td>

备注�?.电磁脉冲阀均可装消音器� 2.电磁脉冲阀可选配有认证的防爆线圈、�/p>

材质说明

阀体Body	ADC12铝合� ADC12 aluminum alloy
卡簧Clamp spring	304不锈� 304stainless steel
先导组件Pilot component	430FR不锈钢等材料 430FR stainless steel,etc
膜片Diaphragm	丁睛橡胶/氟橡胶Nitrite rubber/fluororubber(high-temperature valve)
弹簧Spring	304不锈� 304 stainless steel
紧固体Fastener	302不锈� 302 stainless steel

膜片采用**成品膜片，质量与进口媲美，超强的拉伸性，每片膜片都经过严格检测后方可进入装配线、装配后每一个成品阀进行检测，各项指标全部合格方可出厂、�/p>

Diaphragm with the top end of the film, the quality and import comparable, super tensile, each piece of the film are strictly detectedbefore entering the assembly line, the assembly after each finished product valve testing, the indicators are all qualified before the factory

型号含义

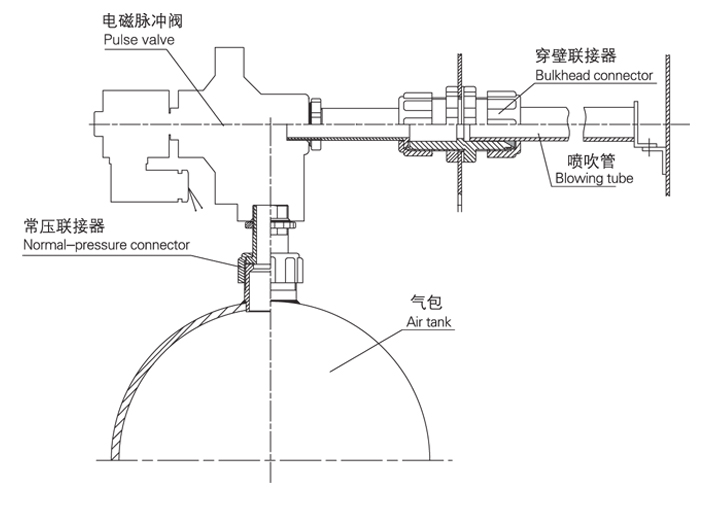

安装示意国�/p>

规格尺寸

安装方法提示

1、电磁脉冲阀的喷吹气源由气箱(气包)提供，分气箱有方形和圆形二种，圆形分气箱耐压力效果较好，使用淹没式电磁脉冲阀时，方形分气箱安装比较方便、�/p>

2、分气箱的截面积和长度决定储气容积，其容积应满足该组脉冲阀每次喷吹后，箱内剩余压力不低于喷吹前压力�?0%，进气管内径决定向分气箱充气速度，其速度应满足该组脉冲阀每次喷吹�?0s内使箱内气体恢复至喷吹前压力、�/p>

3、脉冲阀应安装在分气箱的上部或侧面，安装侧面时脉冲阀输入端中心不应低于分气箱侧面中心线以下，脉冲阀不可安装在分气箱底部，同时脉冲阀输出端应安装处于水平或向下位置，不可安装向上位置、�/p>

4、喷吹管的喷吹孔应小�?8左右，开孔为:8-32mm(远小近大)，喷吹管离布袋口200-400为宜、�/p>

电磁脉冲阀常见问题

使用阶段 Stage of use	故障现象 Fault	原因分析 Cause analysis	排除方法 Eliminating method
安装调试�?br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>Installation and Commissioning	所有阀无法打开，但先导部分 有动佛�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>Not all the valves can be opened,but the pilot part is running	检查气包压力是否过位�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>Check whether the air tank pressure is too low	排查漏气 Check and prevent air leakage
	某些阀不工作，其他阀正常 Some valves cannot run while others can	检查阀的线路连接及线圈 Check the line connections and sole-noids of the valves	更换配件 Replace relevant parts
	所有阀无法关闭，有漏气＋�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>气包压力无法建立 Not all the valves can be closed;there is air leakage; the air tank pressure cannot be established	阀的进气口与喷吹口相反安装 The air inlets and air outlets of the valves are reversely Installed	重新安装 Install the valves again
	某些阀无法关闭，有漏气 Some valves cannot be closed, there is air leakage	有杂质吸附在膜片上，动铁芯有卡死现象 There are foreign matters on the diaphragms; the armatures are seized	清洁膜片，检查膜片是否完整， 检查动铁芯及气塝�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>Clean the diaphragms and check whether they are complete; check the armatures and the air plugs
使用过程�?br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>Use	阀关闭缓慢 Valve closing is slow	膜片节流孔受場�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>The diaphragm orifices are blocked	疏通膜片节流孔 Unblock them
	某些阀漏气，膜片关不死＋�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>阀常开 Some valves leak, they often open,their diaphragms cannot be closed com-pletely	有杂质吸附在膜片上，先导损坏，动铁芯有卡死现豠�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>There are foreign matters on the diaphragms; the pilot parts are dam-aged; the armatures are seized	清洁膜片，检查膜片是否完整， 检查动铁芯及塞等，及时更换配件 Clean the diaphragms and check whether they are complete; check the armatures and the air plugs; replace relevant parts promptly
	线圈发热，烧�?br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>There is solenoid heating or burning	长时间通电 The valves have been powered on for a very long time	检查控制系统的工作状况 Cheak the operating status of the control system
	有电压，但阀不动佛�br style="list-style-type:none;font-family:微软雅黑;padding:0px;"/>There is voltage but the valves cannot run	膜片损坏或节流孔受堵 Diaphragm is damaged, pilot opening is blocked	及时更换配件 Replace relevant parts promptly
	环境温度低，阀有漏气或无法打开 The ambient temperature is low; the valves leak or cannot be opened	环境温度过低，阀内有结冰现象 Ambient air temperature too low valve intelnal frozen	注意保温 Keep a properly high temperature
