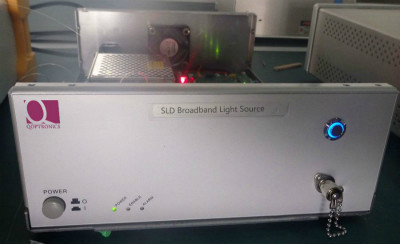

C波段ASE宽带光源
PDF资料下载
C波段光源，波?525-1565nm，增益平坦滤波器GFF可选配，输出功?0-25dBm，DOP?%，可提供OEM服务、/p>
Parameters |
Unit |
||
Part No. |
- |
LQ-ASE-C-P-PW-SP(GFF) |
|
Central wavelength |
nm |
1525~1565 |
|
GFF |
No |
GFF |
|
Flatness |
dB |
No |
<2 |
Power spectral density |
dBm/nm |
?/span>-10~-20 |
?/span>-2~-20 |
Spectrum width |
nm |
>50 |
|
Output power |
mW |
10~25 |
7~18 |
Spectral stability |
dB |
?#177;0.05dB/5 min |
|
Output power short-term stability |
dB |
?#177;0.02dB/15 min |
|
Output power long-term stability |
dB |
?#177;0.03dB/8 hour |
|
Degree of Polarization |
DOP |
≣/span>5% |
|
Operating mode |
- |
CW |
|
Fiber pigtail |
- |
Single mode SMF-28 |
|
Output connector |
- |
FC/UPC or FC/APC etc |
|
Operating temperature |
ℂ/span> |
0 ~ +65 (-20 ~ +65 available) |
|
Storage temperature |
ℂ/span> |
-20 ~ 70 |
|
Relative humidity |
% |
20~80 |
|
Power supply |
- |
+5V DC; >500mA;▲/span>V；/span>1%(Module); AC 110/220V10% 50Hz 20W(Desk-top) |
|
Maximal Power Consumption |
W |
10 |
|
Dimensions (LWH) |
mm |
907019 Module; 32022090 Benchtop |
|
2ℂ/span>1. Test condition: fixed temperature CW.
2ℂ/span>
Order Information９/span>LQ-ASE-C-P-PW-SP(GFF)
P:Package＋/span>B-Benchtop＋/span>M-Module
PW: Output power in mW example:1-1mW ?-5mW
SP: Feedback protection 0-None＋/span>1-Yes
