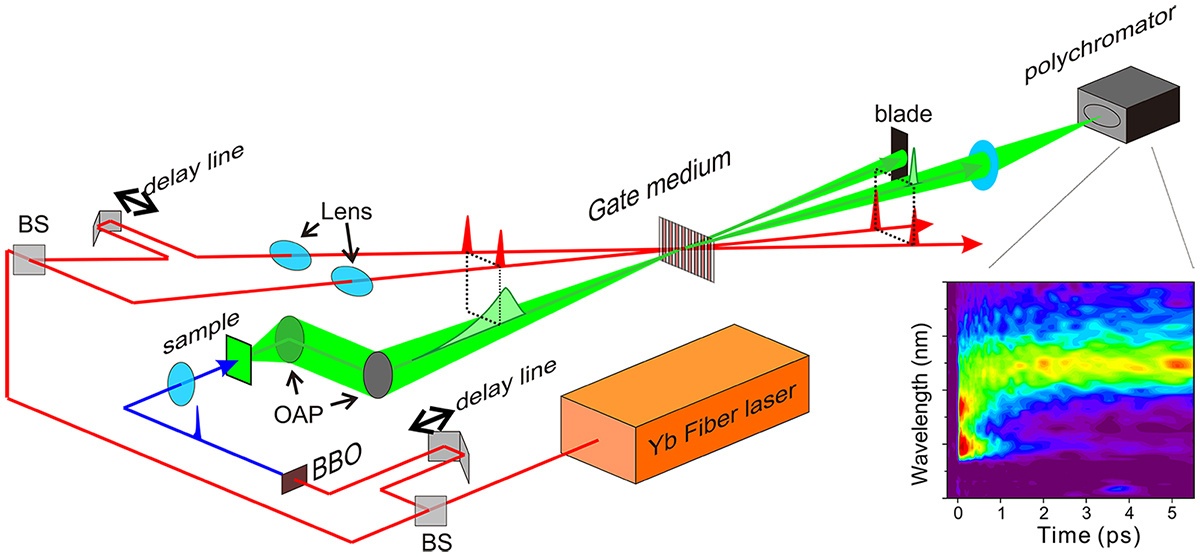

TGPLSMatriX-1[Time-Resolved Photoluminescence spectroscopy] is the first commercially availablebroadband fluorescence spectrometer designed for femtosecond amplifier laser systems. Time-resolved fluorescence (or photoluminescenc e) spectroscopy is widely used to reveal electronic excited state dynamics in emissive materials ranging from semiconductors� to nanomaterials� dyes� and proteins. Other time resolved fluorescence spectrometers fall in two categories; broadband spectral resolution with time resolution limited totens of picoseconds or longer; or ultrafast time resolution limited to single wavelength scans. Neither of these approaches adequately captures ultrafast spectral evolution associated with a host of critical photophysical processes.TGPLSMatriX-1breaks this tradeoff with the unique ability to capture broadband fluorescence spectra on femtosecond timescales� with high signal quality� low background noise� and rapid data acquisition. TheTGPLSMatriX-1instrument is based on patented transient grating gate technology developed by ultrafast spectroscopy researchers at Victoria University of Wellington� New Zealand. Combining the intrinsic advantages of transient grating gate� and hardware and software user interfaces developed by spectroscopists�TGPLSMatriX-1is the benchmark next generation time resolved fluorimeter.

TGPLSMatriX-1[时间分辨光致发光光谱�?/span>]，是**台商用的设计用于飞秒放大激光系统的宽带荧光光谱仪。时间分辨荧先�/span>(或光致发先�/span>)光谱广泛用于揭示发射材料中的电子激发态动力学，从半导体到纳米材料、染料和蛋白质。其他时间分辨荧光光谱仪可分为两类：宽带光谱分辨率，时间分辨率限制在几十皮秒或更长；超快时间分辨率，仅限于单波长扫描。这两种方法都不能充分捕捉到与许多关键光物理过程相关的超快光谱演化、�/span>TGPLSMatriX-1打破了这一局限，它具有捕捉飞秒级宽带荧光光谱的独特能力，具有高信号质量、低背景噪声和高速数据采集、�/span>TGPLSMatriX-1是基于由新西兰惠灵顿维多利亚大学＇�/span>Victoria University of Wellington� New Zealand）的超快光谱研究人员开发的瞬态光�?*技术。结合瞬态光栅的固有优势，以及光谱仪开发的软硬件用户界面，TGPLSMatriX-1是下一代时间分辨荧光计的基准、�/span>

ProductSpecification主要规格９�/span>

-Wavelength range: 350 - 750 nm and 850-1300 or 350 - 950 nm and 1050 - 1400 nm 1

波长范围９�span>350-750mm咋�span>850-1300nm，或350-950nm咋�span>1050-1400nm1

-Wavelength resolution: depends on polychrometer

波长分辨率：取决于多色仪

-Delay range: user defined� 600 ps� 1 ns

延迟范围：用户自定义＋�span>600ps＋�span>1ns

-Time resolution: <200 fs based on 100 fs laser source 2

时间分辨率：<200fs（基亍�span>100fs激光源（�span>2

-laser source: femtosecond amplifier� Ti-sapphire or Fiber or Yb:KGW

激光源：飞秒放大器�?span>Ti-Sapphire、光纤或YB:KGW激光器

-Polychrometer: image spectrometer+CCD or monochrometer+PMT

多色仪：图像光谱�?span>+CCD或单色仪+PMT

-Dimensions:600��900��250mm

尺寸９�span>600��900��250mm

1.For Ti-sapphire laser system: 350 � 750 nm and 850-1300. Fiber and Yb:KGW laser system: or 350 � 950 nm and 1050� 1400 nm. The wavelength range also depends on the detectors

对于钛蓝宝石(Ti-sapphire)激光系统：350-750nm咋�/span>850-1300nm；光纤或Yb:KGW激光系统：350-950nm咋�/span>1050-1400nm。波长范围也取决于探测器

2.Time resolution depends on the pulse width of the laser source and response time of the gate medium

时间分辨率取决于激光源的脉冲宽度和门介质的反应时间

Highlights优势

TheTGPLSMatriX-1is the only spectrometer in the market that allows users to capture broadband fluorescence spectra on femtosecond timescales. TheTGPLSMatriX-1enables users to rapidly acquire high quality spectral data� reduce time spent on cleaning noisy data and integrate into existing spectroscopic workflows.Specifically:

TGPLS Matrix-1是市场上**能够在飞秒时间尺度上捕获宽带荧光光谱的光谱仪，它使用户能够快速获取高质量的光谱数据，减少清理噪声数据所花费的时间，并容易集成到现有的光谱工作系统中、�/span>

特别是：

1.Rapid spectral data acquisition

快速光谱数据采雅�/span>

?Full fluorescence spectral dynamics on sub picosecond timescales (not just kinetics of a single wavelength)

亚皮秒级的全荧光光谱动力�?span>(不仅仅是单个波长的动力学)

?Tunable ultrafast gate time window (<200 fs to <1 ps)*

可调超快快门时间窗口(<200 fs�?span><1 ps)*

?Single high spectral resolution transient spectrum in <2 seconds (with high repetition rate laser source)

<2秒内的单一的高光谱分辨率瞬态光谰�span>(高重复率激光源)

?Near UV to near IR fluorescence range� compatible with high efficiency photon detectors and high-quality optics in this spectral region

近紫外到近红外的荧光范围，在这个光谱区域与高效率的光子探测器和高质量的光学兼宸�/span>

2.High-quality scientific data

高质量的科学数据

?Minimal dispersion and aberration with aspherical reflective optics

非球面反射镜片，具有*小的色散和像�?/span>

?Intuitive and repeatable alignment procedure to minimize impact on data noise

直观和可重复的校准程序，以尽量减少对数据噪声的影哌�/span>

?High quality signals with low excitation intensity (

高质量信号，低激励强�?span>(

3.Ease of integration

易于集成

?Easy and fast spectral calibration

简单快速的光谱校准

?Easy-to-use data acquisition software for automated measurement

简单易用的可自动测量的数据采集软件

?Ready to be implemented with various ultrafast laser sources: Ti-sapphire� Fiber� Yb:KGW

可用于各种超快激光源：钛蓝宝石、光纤�?span>Yb:KGW

?Broadband ultrafast spectral evolution selectively probes electronic excited state dynamics and complementary information to other ultrafast spectroscopy techniques
