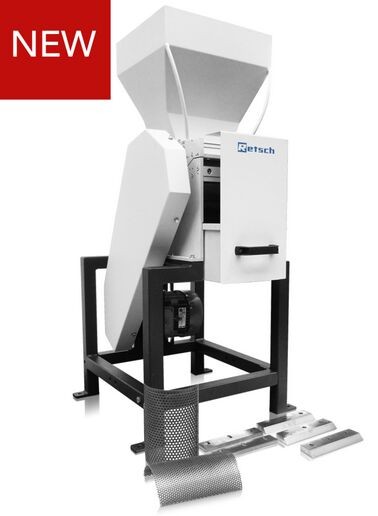

Cutting mills are suitable for thegrinding of soft, medium-hard, tough, elastic, fibrous, and heterogeneous mixes of products.The Cutting Mill SM 400 XL is ideally suited for pre-cutting of large sample pieces but, depending on the application, may also achieve the required fineness in one step.

Thehigh torqueof the new 3 kW drive with flywheel mass allows for an exceptionally effective preliminary size reduction of heterogeneous mixtures, such as waste or electronic components.

The cutting mill is used successfully for a great variety of materials. The sample is only moderately warmed up during the grinding process so that the mill is perfectlysuitable for grinding temperature-sensitive materials.Due to the large open surface of the 240 mm x 240 mm bottom sieve, it is possible to grind large sample quantities and to increase the throughput.

When operated with theoptional cyclone-suction-combination, the SM 400 XL is also suitable for grinding light sample materials. In combination with the wide choice of bottom sieves, hoppers and collecting vessels, the mill can be easily adapted to varying application requirements.

应用实例

动物饲料, 原料混合�? 塑料, 塑料玩具, 废料, 木头, 树脂, 植物原料, 橡胶, 燃料废料, 瓶胚, 电子元件, 电缆, 皮革, 稻草, �? 纸张, 纸板, 纺织�? 聚合�? 药品, 褐煤, 进样小球, 铝炉�? 非铁金属, 食物, 香料, 骨头, ...

优点

• powerful size reduction thanks to 3 kW drive

• **的切割效枛�/p>

• accepts large feed sizes up to 170 mm x 220 mm

• quick and easy cleaning due to fold-back hopper, smooth surfaces

• defined final fineness due to bottom sieves with aperture sizes from 0.50 - 20 mm

性能指标

应用	切割粉碎
应用领域	农业, 化学 / 合成材料, 医药�? 工程/电子, 环境 / 资源回收利用, 生物, 食物
样品特征	软性的, 中硬�? 硬的, 弹性的, 含纤维的
粉碎原理９�/td>	剪切劚�/td>
**进样尺寸	< 170 x 220 mm
*终出料粒� *	0.5 - 20 mm
粉碎腔容�?/td>	~7,45L
网频50赫兹�?0赫兹）下的转逞�/td>	280�?分钟
旋翼圆周线速度	2,25 m/s
转刀直径	152 mm
转刀类型	parallel section rotor
进料漏斗	普通漏�? 长型漏斗
研磨套件材料９�/td>	硬质�? 碳化�?/td>
筛网尺寸９�/td>	trapezoid holes 0.50 / 1.00 / 2.00 mm round holes 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm
收集系统/容量	collecting receptacle 5 l optional: cyclone-suction combination
驱动	三相电机
驱动功率	3 kW with flywheel mass
电源数据９�/td>	不同电压
电源接头９�/td>	三相
制动系统	-
防护类型	IP 54
机体尺寸（宽x高x纵深（�/td>	695 x 1399 x 719 mm
净里�/td>	~ 180 kg
标准	CE

Please note:
受样品材料性质和仪器配�?设定的影哌�/small>

作用原理

Size reduction in the Cutting Mill SM 400 XL takes place by cutting and shearing forces. The sample hits the rotor and is comminuted between the blades and the stationary cutting bars inserted in the housing.

Thanks to the wide range of accessories, the SM 400 XL can be easily adapted to different application requirements

根据技术改造和误差调整
