产品描述９/span>0S-20/OS-30轨道式摇床外型简洁大方，功能多样，缓和的震荡适用于不同领域的多种混匀工作。采用直流无刷电机技术以及微电脑控制技术，融入人性化设计，操作简单方便，适用于生物学、微生物学和医学分析等领域。低能耗，安全稳定无噪韲/span>
1、转速可调，功能多样，缓和的震荡适用于不同领域的多种混匀工作。适合冷冻室使用、/span>
2、外观简洁大方，LED显示转速和时间，操作面板清爽而简单，不易出错。流线型机身方便清洁、/span>
3、设有定时功能，1min-100小时范围内任意设定，时间控制器可自动报警，实现无人操作、/span>
4、直流无刷电机驱动，长寿命，免保养，安静稳定无噪音、/span>
9、可更换不同容器的载物台，备有锥形烧瓶架、可调烧瓶架、通用托盘可供选配、/span>
0S-20轨道式摇庉/span> |
0S-30轨道式摇庉/span> |
|
转逞/span> |
50-300 rpm |
50-250 rpm |
轨道直径 |
20mm |
30mm |
定时范围 |
1min-100小时 |
|
**载重 |
2KG |
|
工作环境温度 |
4-45ℂ/span> |
|
外形尺寸 |
284x264x90mm |
|
电压及功玆/span> |
220V 50HZ60W |
|
注：UP-12可调烧杯架可容纳1000ml烧杯2只，500ml烧杯4只，250ml烧瓶4只、/span>
Product Numbers:OS-20/OS-30

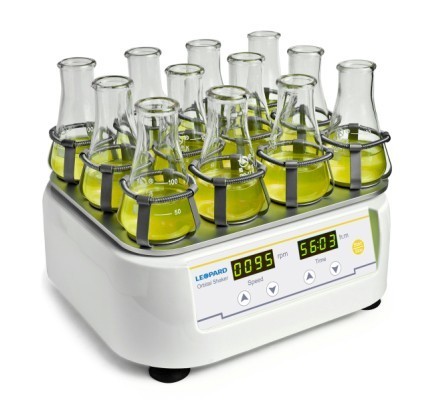

Product description:OS-20/OS-30 orbital shaker is compact and amazingly designed. It is used for any mixing applications in different industries. Built with DC brushless motor adopted micro-computer control technology the orbital shaker is easy to operate. Gentle shaking it is applied in different laboratories of molecular biology microbiology immunology chemistry etc. It is low-energy safe stable and no noise.
1. Speed adjustable. Gentle shaking applied in different industries.
2. LED display time and speed.
3. Compact and clean designed streamlined fuselage simple operation convenient for cleaning.
4. Timing function. Beep alarm when operation ends.
5. DC brushless motor safe long life and free of maintenance. Operating silent and stable.
6. Different platforms to adapt different conical flasks and other sample containers for optional choices.
Technical Parameters９/span>
Model |
GS-20 Orbital Shaker |
GS-30 Orbital Shaker |
Speed Range |
50-300 rpm |
50-250 rpm |
Orbit |
20mm |
30mm |
Timing Range |
1min ~99h59min |
|
Max. Loading Capacity |
2.0kgs |
|
Operating Condition Temp. |
4 ~45C |
|
Dimensions |
284 x 264 x 108 mm |
|
Voltage |
AC 100 ~230V |
|
