控制系统说明

Control system description:

本控制系统包括：温度控制系统，风机控制系统，变频调速系统及网带清扫系统、�/span>

Control system include: temp control system, fans control system, frequency [speed] control system, and belt clean system.

4.1.1设备所用的减速机均为江苏减速机厂的产品，配套电机为安徽皖南电机有限公司的产品，轴承为哈尔滨轴承厂的产品、�/span>

Speed reducer and motors from local market

4.1.2网带及链条的速度为变频调节约＇�/span>0.58–�/span>0.29（�/span>m．�/span>min，停留时闳�/span>35min–�/span>70min可调、�/span>

Driving speed of Belt and chain is frequency control＇�/span>0.58�?.29（�/span>m．�/span>min, seaweeds gel residence time 35min�?0min adjustable.

4.1.3设备箱体保温层厚80mm，材料为硅酸铝或岩棉、�/span>

Thickness of heatinsulation is80mm, material isalumina silicate or rock-wool.

4.1.4碳钢件的防锈采用氯化橡胶漆、�/span>

Antirust paint for C.S parts is chlorinated rubber paint.

4.1.5所有接触物料的紧固件为不锈钢、�/span>

All fasteners contact with raw material is made of Stainless steel.

4.1.6循环风向及各单元内风的循环为向下式，即加热后的空气由引风机吸入，在风机出风口首先预分布再经过孔板均风后，热风从物料的下面向上（或从物料的上面向下）穿透物料层、�/span>

Circulation of air is adown type, that is to say after heating, hot air sucked bydraught fans, and after air balance,Hot air penetrate raw material upward or downward.

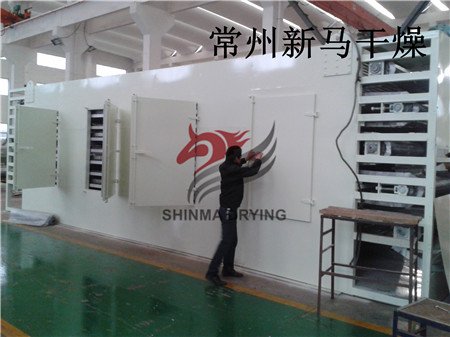

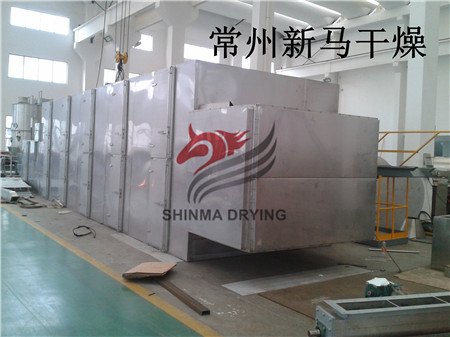

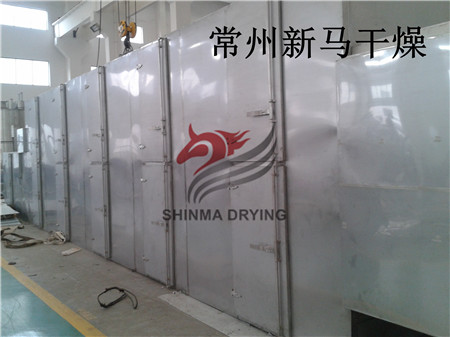

干燥机材�?/span>

Material of Drying machine:

内壁SUS304，外�?/span>SUS304不锈钢板：�/span>

Inside wall SUS304, outside wall SUS304

链轮、链条碳钢，链条节距203.2：�/span>

Chain wheel and chain link C.S, Chain link pitch 203.2;

网带材料为不锈钢：开孔率13%,长腰孓�/span>1.14X6mm：�/span>

Material of belt apron is stainless steel, open area 13%, ell type 1.14X6mm：�/span>

风机不锈钢，风机顶部隔热层采用硅酸铝材料保温：�/span>

Fans stainless steel, the heat preservation material on the top of fansalumina silicate;

风机顶部的风管及排风管均丹�/span>SUS304不锈钢材料；

Air pipes and air exhaust pipes on the top of fans SUS304.

挡料板材�?/span>SUS304，高�?/span>120：�/span>

Striker plate SUS304, Height 120.
