产品简今/div>

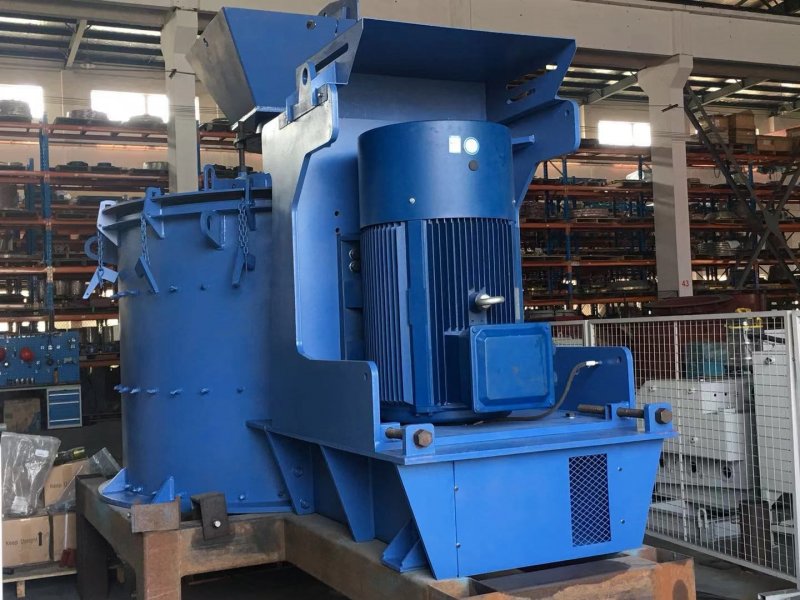

VSI立轴冲击式破碎机
产品级配可保持恒定,因为磨耗件不直接破碎岩石,物料的金属污染极低,性能可靠、振动小,在增加产能的同时,较大程度地缩减了设备的检修停工时间、/strong>
The gradation can be maintained stable, because the wear parts so not crusher the minerals, the metal contamination of minerals is extremely low, the performance is reliable, the vibration is small. Meanwhile of increasing the capacity.it also maximizes to shorten the shut-down time of equipment maintenance.
CVS系列立轴冲击式破碎机 CVS Series of VSI
破碎机规栻/strong> Model |
CVS711 | CVS718 | CVS825 | CVS837 | CVS850 |
**给料尺寸 Max Feeding (mm) |
50 | 50 | 55 | 55 | 55 |
破碎机重野br/> Weight (kg) | 9505 | 9505 | 11780 | 14830 | 14830 |
**电机功率Max Motor Power (kW) | 110 | 185 | 250 | 2 X 185 | 2 X 250 |
生产能力 Capacity (t/h) |
50-120 | 120-190 | 190-253 | 250-445 | 445-605 |
MVS系列立轴冲击式破碎机 MVS Series of VSI
破碎机规栻br/> model | 尺寸mm size |
功率kw power |
重量kg Weight |
**给料粒度mm Max feed size |
转速rpm Speed |
产能MTPH capacity |
MVS2000-R | 2100 | 250 | 11900 | 40 | 800-1800 | 150-250 |
MVS2000-R-D | 2100 | 150×2 | 15400 | 50 | 800-1800 | 100-300 |
MVS2000-S | 2100 | 350 | 13900 | 40 | 800-1800 | 100-250 |
MVS2000-S-D | 2100 | 200×2 | 15980 | 40 | 800-1800 | 100-400 |
MVS2500-R | 2400 | 315 | 12840 | 50 | 800-1800 | 100-350 |
MVS2500-R-D | 2400 | 250×2 | 15600 | 40 | 800-1800 | 150-350 |
MVS2500-S | 2400 | 315 | 15840 | 63 | 800-1800 | 100-350 |
MVS2500-S-D | 2400 | 250×2 | 18600 | 63 | 800-1800 | 180-450 |
