Technical Specification
CD162 SD162
Plate material Glass ceramic Aluminium/silicon alloy
Plate dimensions mm 160 x 160 160 x 160
Heated area mm 120 x 120 160 x 160
Heater power W 500 700
Display resolution C 1 1
Max. plate temp. C 450 300
Max. liquid temp with probe C 200 200
Control accuracy with probe C 0.5C 0.5C
Stirrer speed rpm 200 to 1300 200 to 1300
Max. stirring capacity litres * 15 15
Net weight kg 3.4 3.4
Overall dimensions (w x d x h) 190 x 300 x 110 190 x 300 x 110
Electrical supply 230V 50/60Hz 230V 50/60Hz
技术参数：
Model CD162 has a glass ceramic top plate which is chemically resistant and gives very fast heat up times.
Model SD162 has an aluminum / silicon alloy top plate which gives a very even plate temperature and quick response to changing set temperature.
stirrers & stirrer hotplates
主要特点９/strong>
Digital setting and control of both temperature and speed
Supplied complete with temperature probe for accurate control of liquid temperature
Advanced safety features:
- Flashing "Hot" warning light
- Independent safety circuit to protect against overheating
Choice of robust aluminium or chemically resistant ceramic tops

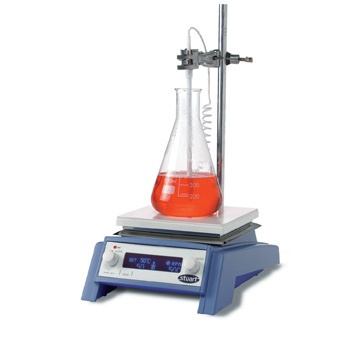

Sophisticated stirrer hotplates offering digital control of both temperature and stirring speed. Comes complete with a detachable PTFE coated probe which when immersed in a liquid sample can very accurately control its temperature to within 0.5C even over a very long period of time.
As the hotplate heats the sample to the set temperature the advanced microprocessor automatically measures the rate of temperature rise to judge the capacity and nature of samples (e.g. oil or aqueous). It then optimises the heating rate to minimize overshoot and time to set point. An audible alert sounds when the set temperature has been reached.
Both set and actual temperature of the sample are displayed simultaneously on a bright easy to read vacuum fluorescent display. For maximum security an independent safety circuit automatically sets to 20C above the set temperature and shuts off the heater if the temperature exceeds this. Therefore the hotplate is safe to leave on continuously even unsupervised e.g. overnight. Internal electronic components are protected against corrosion with a special coating.
Stirring action gives much better temperature uniformity within samples because the liquid is mixed effectively. Powerful magnets and motor give stirring speeds up to 1300 rpm and volumes up to 15 litres*. Stirring speed is set and displayed digitally so that exactly the same speed can be used each time for reproducibility.
