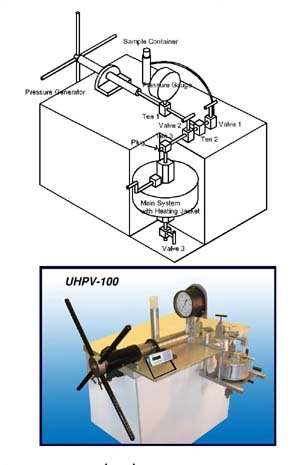

TheUltra High Pressure Viscometer(UHPV-100) consists of a metal needle with hemispherical ends falling vertically in a fluid with its longitudinal axis along the axis of a cylindrical container. A measurement of the needle terminal velocity allows a determination of the viscous properties of the test fluid. With the UHPV-100 the needle falling time is measured automatically by means of Hall sensors and a magnet in the needle.
Applications:
Adhesives Aerosols Automobile Fluids Biomaterials Coal Slurries Coatings Colloids Cosmetics Creams Dairy Products Detergents Dispersions Emulsions Fertilizers Foams Fuels Gels Grease Honey Inks Ketchup Latex Lubricants Mayonnaise Milk Oils Ointments Paints Petroleum Polymers Proteins Pulp Resins Shampoos Slurries Soaps Solutions Surfactants Suspensions Varnish and many more at atmospheric pressure and high pressures.
技术参数：
Specifications:
1、Viscosity Range?.7 to 20?00 cP (mPa s)*
2、Pressure Range：Up to 60?00 psi
3、Temperature Range?40 to 150C*
4、Accuracy & Repeatability：Better than 2%
5、Test Sample Volume：Approx. 10 cm3*
6、Needle Material Metal?Al Ti Stainless Steel)
7、Needle Densities? g/cm3*
8、Total Instrument Weight?8.0 kg (150 lbs)
9、Size：O.A.H. 61cm O.A.W. 107cm O.A.D. 61cm
主要特点９/strong>
Key Features
1、Up to 60?00 psi and 150C
2、Build in Pressure Generator
3、Large Temperature Range of Fluids
4、Measures Absolute Viscosity without Instrument Calibration
5、Better than Two Percent Accuracy and Repeatability
6、Automatic Falling Time Measurements to 0.001 s
7、Microprocessor-based Console with RS-232 Interface
