产品简今/div>
| 产品名称９/td> |

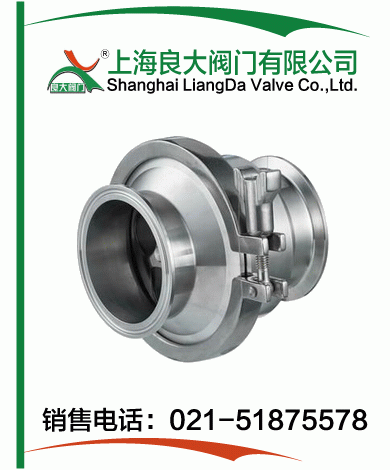

卫生级卡箍式止回阀 |
| 型号９/td> |
WH81F/H |
| 口径９/td> |
DN15-100 |
| 压力９/td> |
1.6-6.4MPa |
| 材质９/td> |
不锈钡/td> |
| 卡箍式止回阀/DIN |
|
Size |
B2 |
D |
A |
| DN15 |
87.0 |
34.0 |
102.0 |
| DN20 |
87.0 |
34.0 |
102.0 |
| DN25 |
87.0 |
50.5 |
102.0 |
| DN32 |
87.0 |
50.5 |
102.0 |
| DN40 |
87.0 |
50.5 |
102.0 |
| DN50 |
100.0 |
64.0 |
113.4 |
| DN65 |
115.0 |
91.0 |
122.0 |
| DN80 |
128.0 |
106.0 |
142.0 |
| DN100 |
164.0 |
119.0 |
182.0 |
| 卡箍式止回阀ISO/IDF |
|
Size |
B2 |
D |
A |
| φ25 |
87.0 |
50.5 |
102.0 |
| φ38 |
87.0 |
50.5 |
102.0 |
| φ51 |
100.0 |
64.0 |
113.4 |
| φ63 |
115.0 |
77.5 |
122.0 |
| φ70 |
128.0 |
91.0 |
142.0 |
| φ100 |
164.0 |
119.0 |
182.0 |
| 卡箍式止回阀/SMS |
|
Size |
B2 |
D |
A |
| 25 |
87.0 |
50.5 |
102.0 |
| 32 |
87.0 |
50.5 |
102.0 |
| 38 |
87.0 |
50.5 |
102.0 |
| 51 |
100.0 |
64.0 |
113.4 |
| 63 |
115.0 |
77.5 |
122.0 |
| 76 |
128.0 |
91.0 |
142.0 |
| 89 |
128.0 |
106.0 |
142.0 |
| 102 |
164.0 |
119.0 |
182.0 |
| 卡箍式止回阀/3A |
|
Size |
B2 |
D |
A |
| 1/2" |
87.0 |
25.4 |
102.0 |
| 3/4" |
87.0 |
25.4 |
102.0 |
| 1" |
87.0 |
50.5 |
102.0 |
| 1 1/2" |
87.0 |
50.5 |
102.0 |
| 2" |
100.0 |
54 |
113.4 |
| 2 1/2" |
115.0 |
77.5 |
122.0 |
| 3" |
128.0 |
91.0 |
142.0 |
| 4" |
164.0 |
119.0 |
182.0 |
