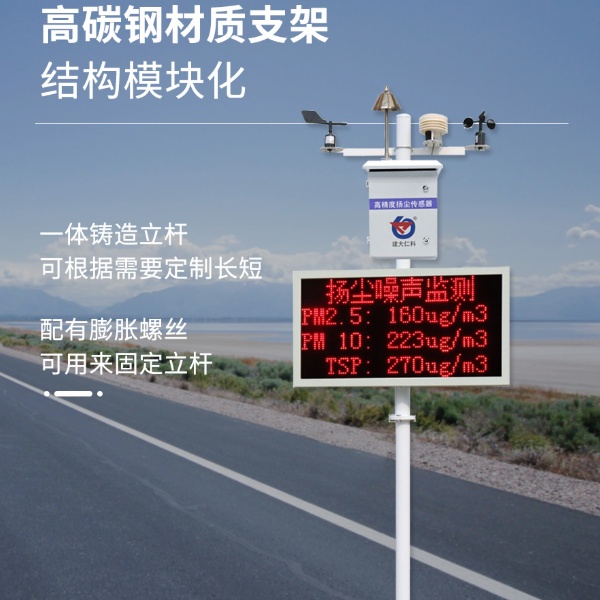

噪声扬尘监测站是专门针对在建工程项目的监测设备。设备具有泵吸功能采用高精度PM＇/span>PM2.5/PM10/TSP）传感器，并且带有过滤除湿功能，该设备具月/span>1路百叶盒（温度、湿度、噪声、气压）采集?/span>1路风速采集?/span>1路风向采集?/span>1路继电器输出（默认可接现场二级继电器控制雾炮）?/span>1?/span>485从站输出；该设备可通过GPRS方式将数据上传监控软件平台，同时该主机能够外?/span>1?/span>LED屏（54cm*102cm）实时显示当前数值信息、/span>
2.技术参?/span>
供电 |
AC220V |
通信接口 |
GPRS无线传输 |
空气温度传感?/span> |
量程９/span>-40｝/span>70ℂ/span>分辨率：0.1ℂ/span> |
精度?#177;0.2ℂ/span> |
|
空气湿度传感?/span> |
分辨率：0.1% |
精度?#177;3% |
|
风速传感器 |
量程９/span>0｝/span>60m/s分辨率：0.1 m/s |
精度?#177;0.3m/s |
|
风向传感?/span> |
量程９/span>8个方佌/span> |
噪声传感?/span> |
量程９/span>30｝/span>130db分辨率：0.1db |
精度?#177;0.5%FS |
|
PM |
量程９/span>0｝/span>1000ug/m3分辨率：1ug/m3 |
精度?#177;8%FS |
|
LED屎/span> |
尺寸54cm*102cm |
继电器输凹/span> |
1路，连接二级继电器，可控制现场雾炮发尃/span> |
设备支架 |
2/3米立杆（可选） |
电控箰/span> |
用于安装电源系统、除湿设备，内涵高精?/span>PM传感?/span> |
3.产品选型
型号 |
要素(默认含LED屏，支架，横梁及抱箍? |
RS-ZSYC5-2S |
PM2.5+PM10 |
RS-ZSYC5-2S-G |
PM2.5+PM10+联网 |
RS-ZSYC5-2S-4G |
PM2.5+PM10+4G联网 |
RS-ZSYC5-3S |
PM2.5+PM10+噪声 |
RS-ZSYC5-3S-G |
PM2.5+PM10+噪声+联网 |
RS-ZSYC5-3S-4G |
PM2.5+PM10+噪声+4G联网 |
RS-ZSYC5-5S |
PM2.5+PM10+噪声+温度+湿度 |
RS-ZSYC5-5S-G |
PM2.5+PM10+噪声+温度+湿度+联网 |
RS-ZSYC5-5S-5G |
PM2.5+PM10+噪声+温度+湿度+4G联网 |
RS-ZSYC5-8S |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力 |
RS-ZSYC5-8S-G |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+联网 |
RS-ZSYC5-8S-4G |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+4G联网 |
RS-ZSYC5-9S |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+TSP |
RS-ZSYC5-9S-G |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+TSP+联网 |
RS-ZSYC5-9S-4G |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+TSP+4G联网 |
RS-ZSYC5-10S |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+TSP+大气压力 |
RS-ZSYC5-10S-G |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+TSP+大气压力+联网 |
RS-ZSYC5-10S-4G |
PM2.5+PM10+噪声+温度+湿度+风?风向+风力+TSP+大气压力+4G联网 |
4.设备安装
4.1设备安装前检?/span>
设备清单：（选型不同，设备数量不同，具体以现场实际为准）
▇风向传感器1
▇风速传感器1
▇风速及风向用挡松/span> 1
▇多功能百叶盒（不带PM2.5（/span> 1
▇电控箱1组装好的电控箰/span>
▆/span>LED屎/span> 1改装好的LED屎/span>
▇三米立杅/span> 1
▇横?/span> 1
▆/span>U型卡1
▇电控箱抱箍及对应螺栒/span> 2
▆/span>LED屏抱箍及对应螺栓2
▇一母三公线1黑色45cm
