1.产品介绍

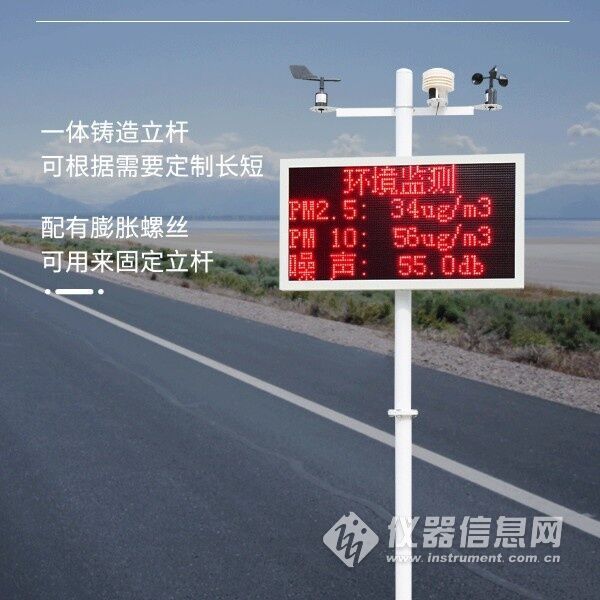

噪声扬尘监测站是专门针对在建工程项目的监测设备。该设备具有2路百叶盒＋/span>1路百页盒可采集温度、湿度、噪声、气压；?/span>1路百叶盒可采雅/span>PM2.5?/span>PM10?/span>TSP；同时还具有1路风速采集?/span>1路风向采集?/span>1路继电器输出（默认可接现场二级继电器控制雾炮）?/span>1?/span>485从站输出；该设备可通过GPRS方式将数据上传监控软件平台，同时该主机能够外?/span>1?/span>LED屏（54cm*102cm）实时显示当前数值信息、/span>
2.技术参?/span>
供电 |
AC220V |
通信接口 |
GPRS无线传输 |
空气温度传感?/span> |
量程９/span>-40｝/span>70℃分辨率９/span>0.1ℂ/span> |
精度?#177;0.2ℂ/span> |
|
空气湿度传感?/span> |
量程９/span>0｝/span>1 00%分辨率：0.1% |
精度?#177;3% |
|
风速传感器 |
量程９/span>0｝/span>60m/s分辨率：0.1 m/s |
精度?#177;0.3m/s |
|
风向传感?/span> |
量程９/span>8个方佌/span> |
噪声传感?/span> |
量程９/span>30｝/span>130db分辨率：0.1db |
精度?#177;0.5%FS |
|
PM |
量程９/span>0｝/span>1000ug/m3分辨率：1ug/m3 |
精度?#177;10%FS |
|
LED屎/span> |
尺寸54cm*102cm |
继电器输凹/span> |
2路，连接二级继电器，可控制现场雾炮发尃/span> |
设备支架 |
2/3米立杆（可选） |
电控箰/span> |
用于安装电源系统 |
3.产品选型
型号 |
要素(默认?span>LED屏，支架，横梁及抱箍筈span>) |
RS-ZSYC1-2S |
PM2.5+PM10 |
RS-ZSYC1-2S-G |
PM2.5+PM10+联网 |
RS-ZSYC1-2S-4G |
PM2.5+PM10+4G联网 |
RS-ZSYC1-3S |
PM2.5+PM10+噪声 |
RS-ZSYC1-3S-G |
PM2.5+PM10+噪声+联网 |
RS-ZSYC1-3S-4G |
PM2.5+PM10+噪声+4G联网 |
RS-ZSYC1-5S |
PM2.5+PM10+噪声+温度+湿度 |
RS-ZSYC1-5S-G |
PM2.5+PM10+噪声+温度+湿度+联网 |
RS-ZSYC1-5S-5G |
PM2.5+PM10+噪声+温度+湿度+4G联网 |
RS-ZSYC1-8S |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力 |
RS-ZSYC1-8S-G |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+联网 |
RS-ZSYC1-8S-4G |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+4G联网 |
RS-ZSYC1-9S |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+TSP |
RS-ZSYC1-9S-G |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+TSP+联网 |
RS-ZSYC1-9S-4G |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+TSP+4G联网 |
RS-ZSYC1-10S |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+TSP+大气压力 |
RS-ZSYC1-10S-G |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+TSP+大气压力+联网 |
RS-ZSYC1-10S-4G |
PM2.5+PM10+噪声+温度+湿度+风逞span>+风向+风力+TSP+大气压力+4G联网 |
4.设备安装
4.1设备安装前检?/span>
设备清单：（选型不同，设备数量不同，具体以现场实际为准）
■百叶盒多合一变送器2?/span>
■风速传感器1?/span>
■风向传感器1?/span>
■电控箱1?/span>
■立杅span>1个（2m长度丹/span>1个，3m长度田/span>2?/span>1.5m组成（/span>
■横梁（U型螺栒/span>1个，M8螺母2个）
■噪声扬尘一体机（包括钥匘span>1把）
■托牆span>2个（百叶盒托片已安装好）?/span>M4*10螺丝12奖/span>
■抱箌span>2个?/span>M10*16螺丝8?/span>
▟span> 1拕/span>3对插纾/span>1根，1拕/span>2对插纾/span>1核/span>
